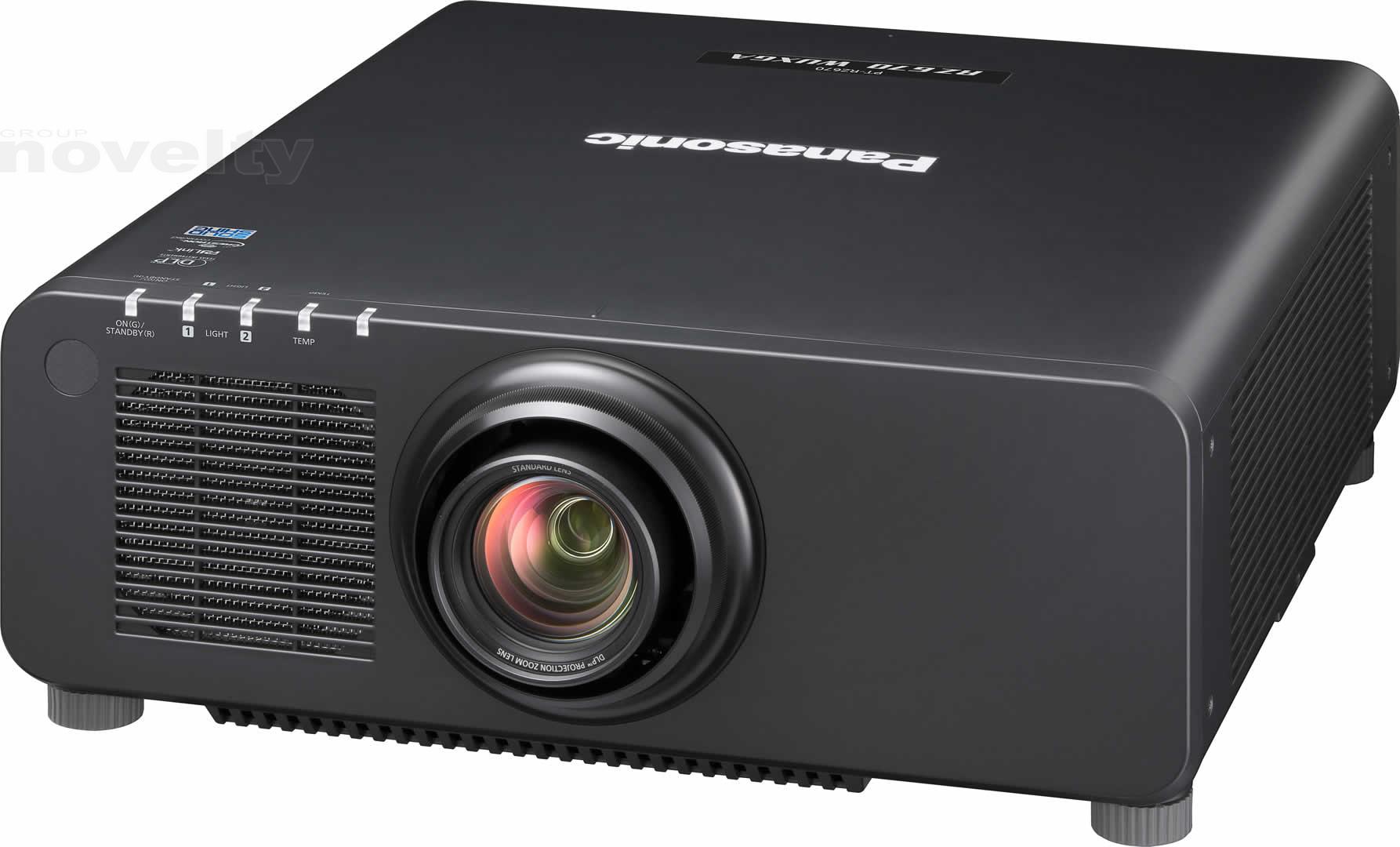

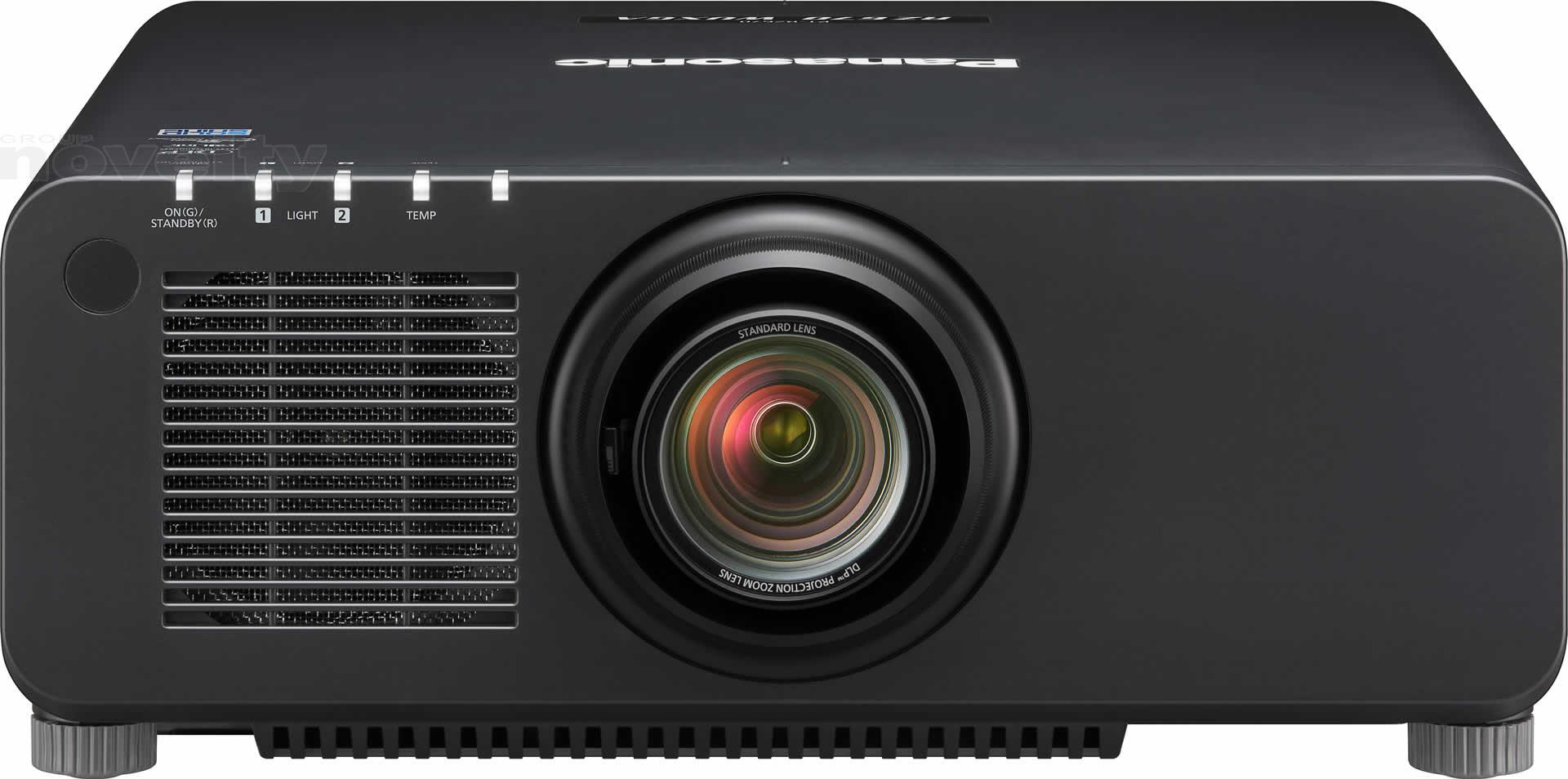

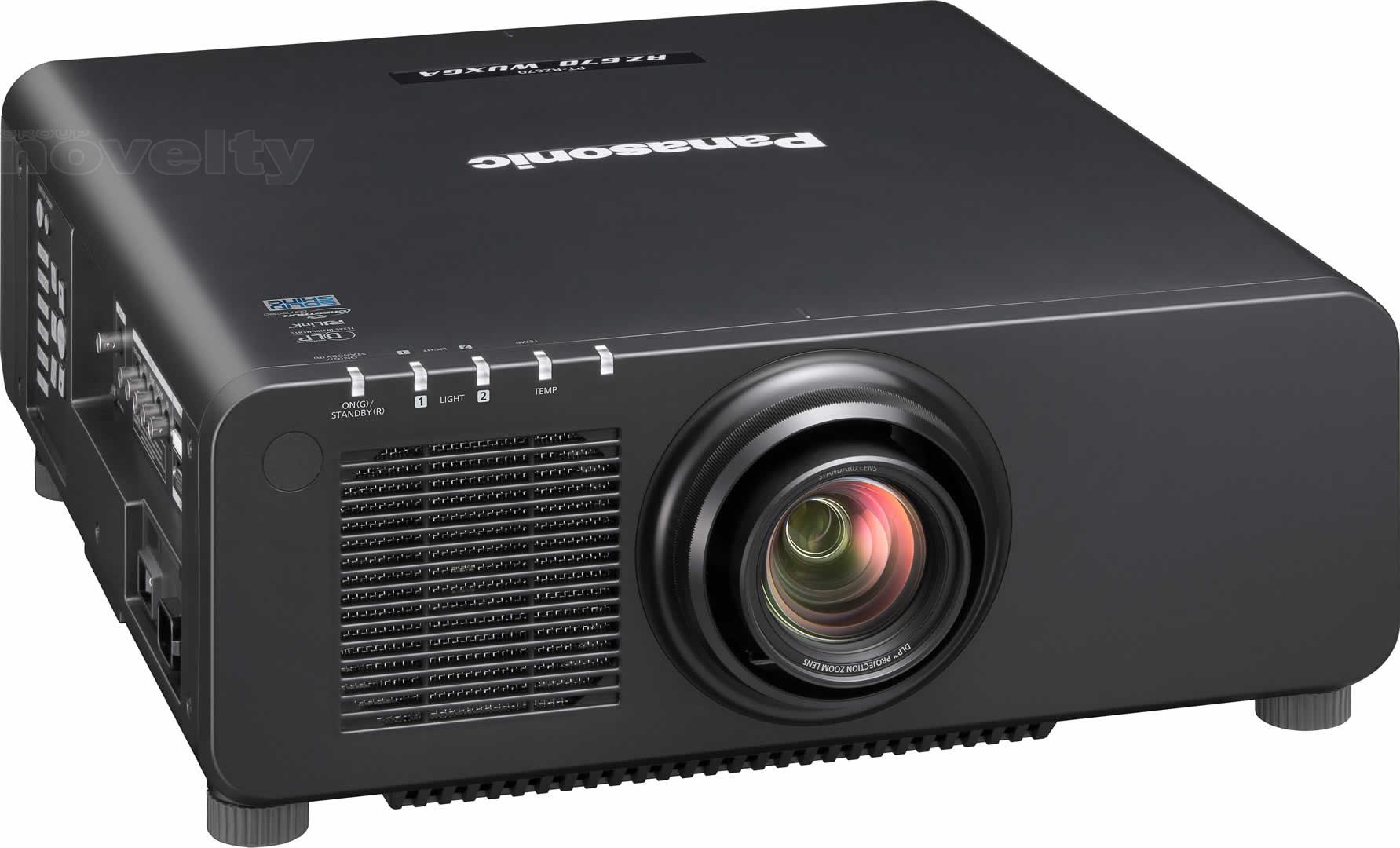

PANASONIC PT-RZ670BE

Vidéoprojecteur Full HD (6500 lumens - 1920 x 1200), 3G-SDI, HD-SDI

Descriptions détaillées

Power supply
AC100 - 240V 9.0 - 4.0A 50Hz/60Hz (Taiwan: AC110V 8.0A 60Hz)

Power consumption
720W (735VA at 240V AC) (Taiwan: 730VA at 110VAC)
NORMAL: 558W ECO: 480W LONG LIFE1: 448W LONG LIFE 2: 430W LONG LIFE 3: 407W
*Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents,
Picture mode: Standard, Dynamic contrast2
Standby Mode (Eco)*1 : 0.3W, 0.2W (Taiwan)
Standby Mode (Normal) : 3W

BTU value
Max 2,457 BTU (Without light 2,368 BTU)

DLP chip
Panel size : 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
Display method : DLPTM chip × 1, DLPTM system
Pixels  : 2,304,000 (1,920 × 1,200) × 1, total of 2,304,000 pixels

Lens
Powered zoom/focus lenses (1.7–2.4:1), F 1.7–1.9, f 25.6–35.7 mm Optional powered zoom/focus lenses and fixed-focus lens

Light Source
Laser Diode (Laser class: Class 1) *Class 3R for North America. Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco)
* Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m3

Screen size
1.27–15.24 m (50–600 inches)
*1.27 – 5.08 m (50 – 200 inches) with the ET-DLE055 (16:10 aspect ratio)
*2.54 – 7.62 m (100 – 350 inches) with the ET-DLE030 (16:10 aspect ratio)

Brightness*2
6,500 lumens (Operation mode: NORMAL)

Center-to-corner uniformity
90%

Contrast
10,000:1 (full on/full off, dynamic contrast ON)

Resolution
1,920 × 1,200 pixels

Scanning frequency
SDI
  • 3G-SDI signal (RGB 4:4:4 12-bit/10-bit):
  • SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p
  • 3G-SDI signal (YPBPR 4:2:2 10-bit):
  • SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p
  • HD-SDI signal (YPBPR 4:2:2 10-bit):
  • SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p
  • SD-SDI signal (YCBCR 4:2:2 10-bit):
  • SMPTE ST 259 compliant: 525i(480i), 625i(576i)
HDMI/DVI-D
  • fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 25 - 162 MHz
  • 525i (480i)*3, 625i (576i)*3, 525p (480p), 625p (576p), 750 (720)/60p,
  • 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,
  • 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p, VGA (640 x 480) - WUXGA*4 (1920 x 1200) compatible with non-interlaced signals only
RGB
  • fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 20 - 162 MHz
YPBPR (YCBCR)
  • 525i (480i): fH 15.75 kHz; fV 60 Hz,
  • 625i (576i): fH 15.63 kHz; fV 50 Hz,
  • 525p (480p): fH 31.50 kHz; fV 60 Hz,
  • 625p (576p): fH 31.25 kHz; fV 50 Hz,
  • 750 (720)/60p: fH 45.00 kHz; fV 60 Hz,
  • 750 (720)/50p: fH 37.50 kHz; fV 50 Hz,
  • 1125 (1035)/60i: fH 33.75 kHz; fV 60 Hz,
  • 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz,
  • 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz,
  • 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz,
  • 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz,
  • 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz,
  • 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz,
  • 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz,
  • 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Video/S-Video
  • fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]

Optical axis shift
Vertical: +50%, -16%(powered),
Horizontal: +30%, -10%(When using the ET-DLE085, +28%, -10%)

Keystone correction range
Vertical±40°*5 / Horizontal: ±15°*6
(When using the optional upgrade kit ET-UK20 Vertical±45°*8/10 / Horizontal±40°*9/10)

Installation

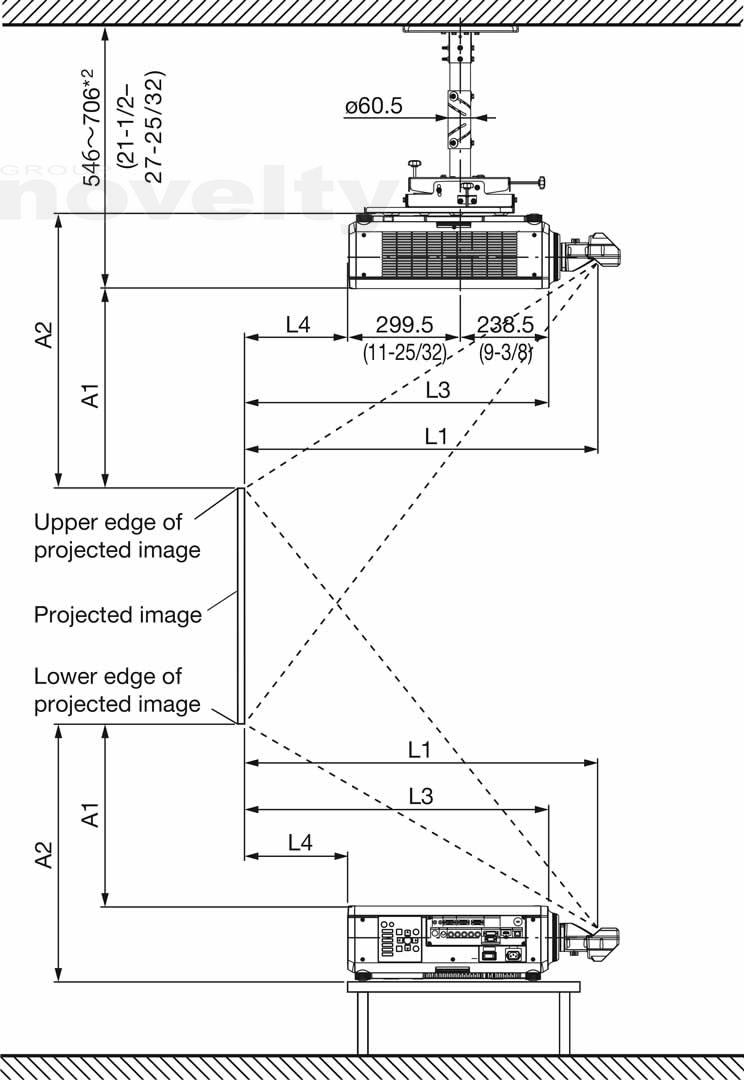

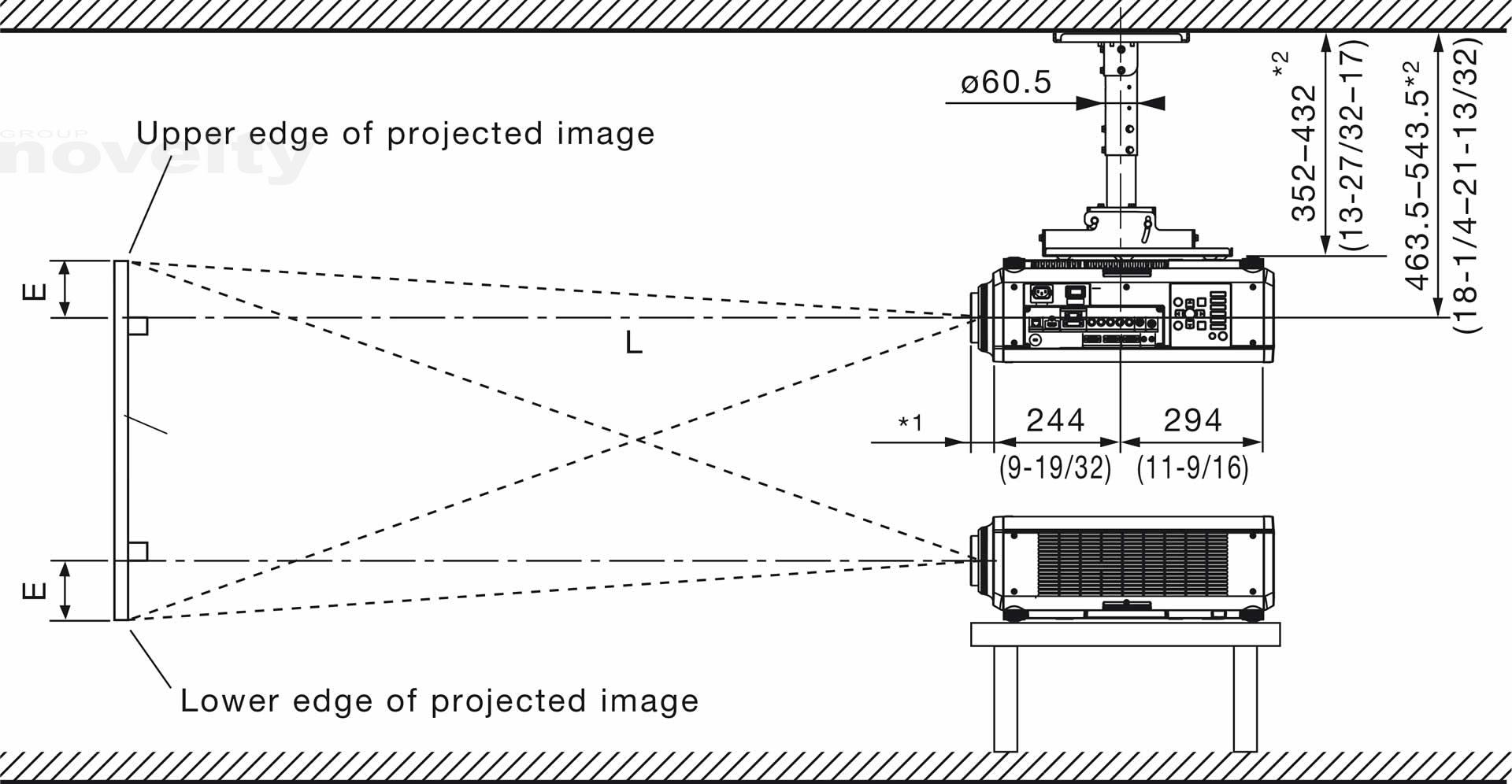

Ceiling/floor, front/rear, 360 degree free installation

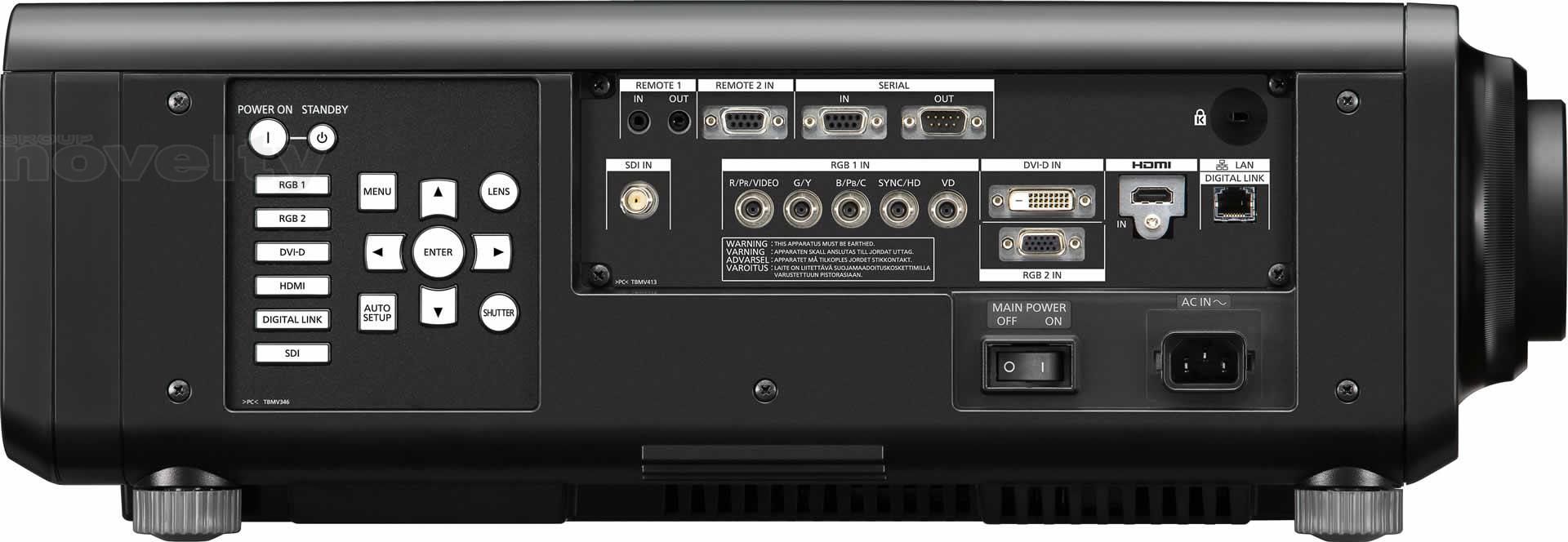

Terminals

SDI IN
  • BNC × 1,
  • 3G-SDI signal: SMPTE ST 424 compliant
  • HD-SDI signal: SMPTE ST 292 compliant
  • SD-SDI signal: SMPTE ST 259 compliant
HDMI IN
  • HDMI 19-pin × 1, Deep Color, compatible with HDCP,
  • 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p,
  • 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,
  • 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p,
  • 1125 (1080)/50p
  • VGA (640 x 480) - WUXGA (1920 x 1200)
  • compatible with non-interlaced signals only
  • NOTE: Compatible with non-interlaced signals only.
DVI-D IN
  • DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, for single link only
  • 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p,
  • 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p
  • VGA (640 x 480) - WUXGA (1920 x 1200)
  • compatible with non-interlaced signals only
  • NOTE: Compatible with non-interlaced signals only.
RGB 1 IN
  • BNC × 5
  • R, G, B
  • R: 0.7 Vp-p, 75 ohms,
  • G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
  • B: 0.7 Vp-p, 75 ohms
  • HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y, PB, PR (Y, CB, CR)
  • Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Y,C
  • Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Video
  • 1.0Vp-p, 75 ohms
RGB 2 IN
  • D-sub HD 15-pin (female) × 1
  • R, G, B
  • R: 0.7 Vp-p, 75 ohms,
  • G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
  • B: 0.7 Vp-p, 75 ohms
  • HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y, PB, PR (Y, CB, CR)
  • Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
SERIAL IN
  • D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
SERIAL OUT
  • D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN
  • M3 jack x 1 for wired remote control
REMOTE 1 OUT
  • M3 jack x 1 for link control (for wired remote control)
REMOTE 2 IN
  • D-sub 9-pin (female) x1 for external control (parallel)
LAN/DIGITAL LINK
  • RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control)
  • connection, 100Base-TX, compatible with Art-Net, compliant with PJLink(TM)(Class 1)

Operation noise
35 dB

Operating temperature
0–45 °C (32–113 °F)*13

Operating humidity
10%–80% (no condensation)
Informations
Propriétés techniques
  • Consommation électrique : 720 W
  • Dimensions du flight-case : … x … x … cm

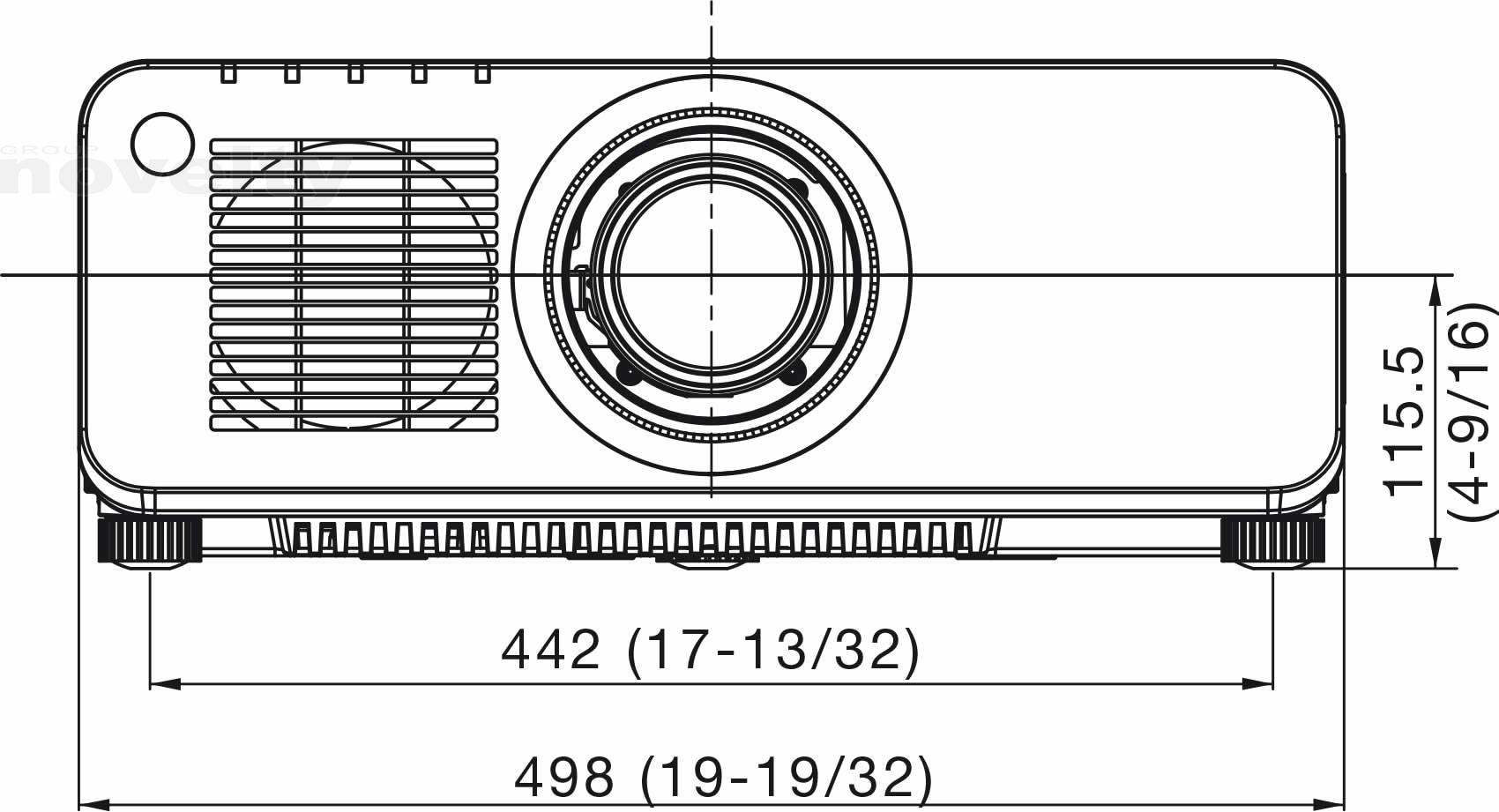

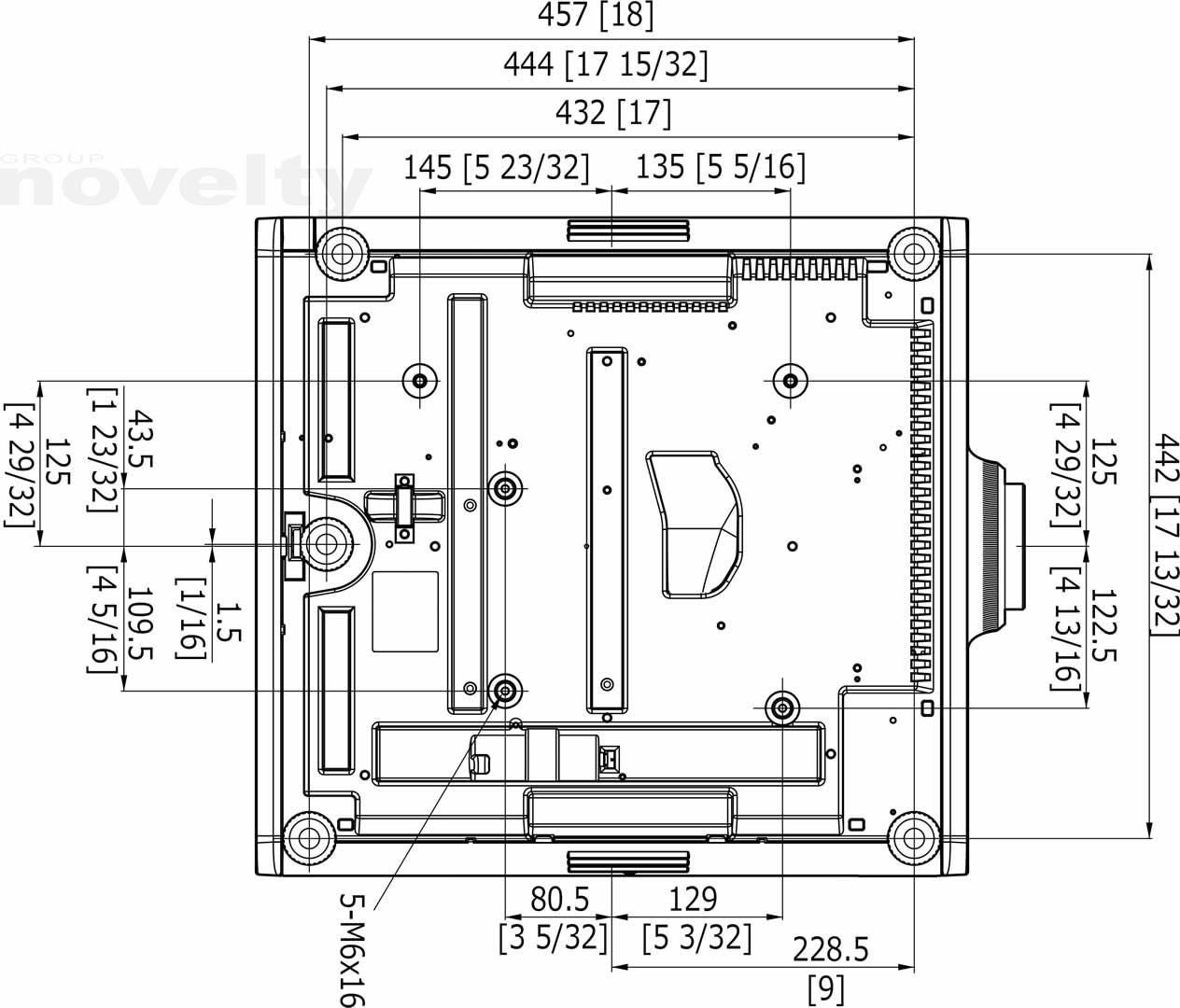

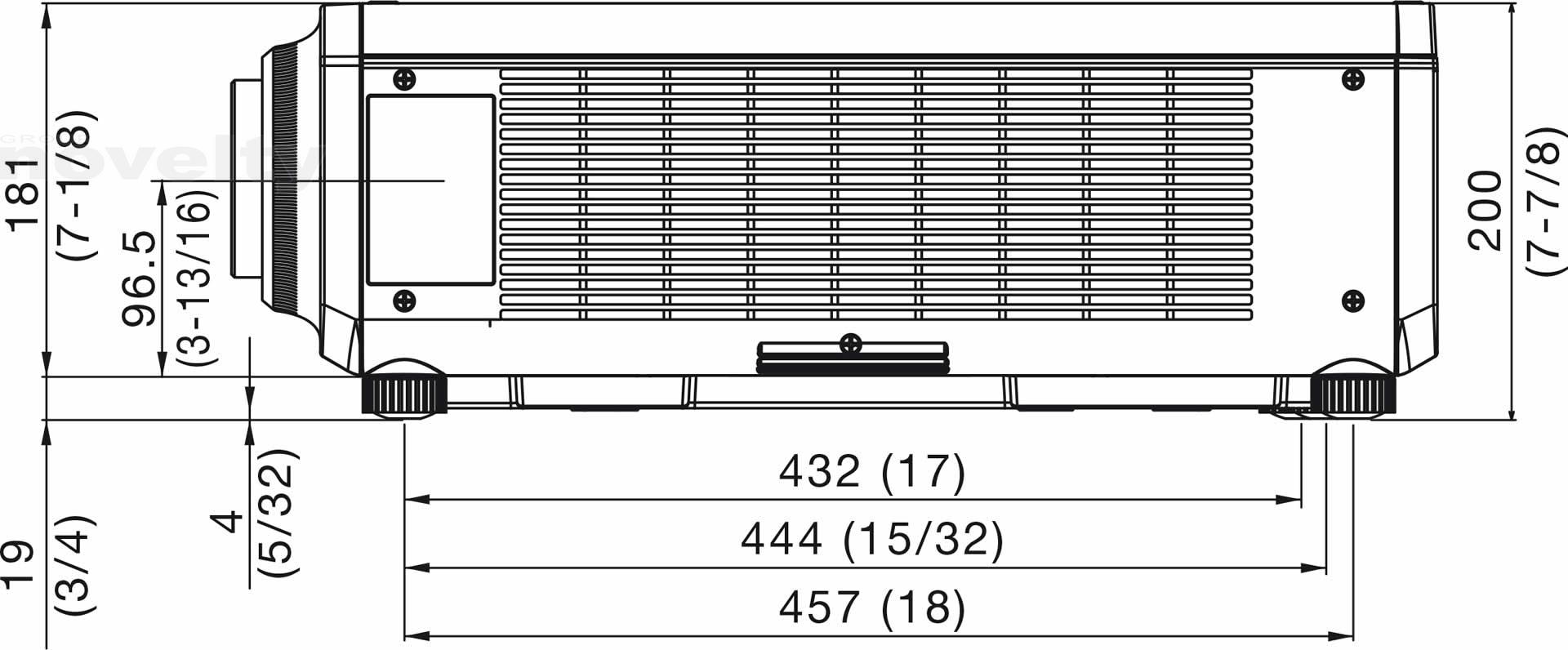

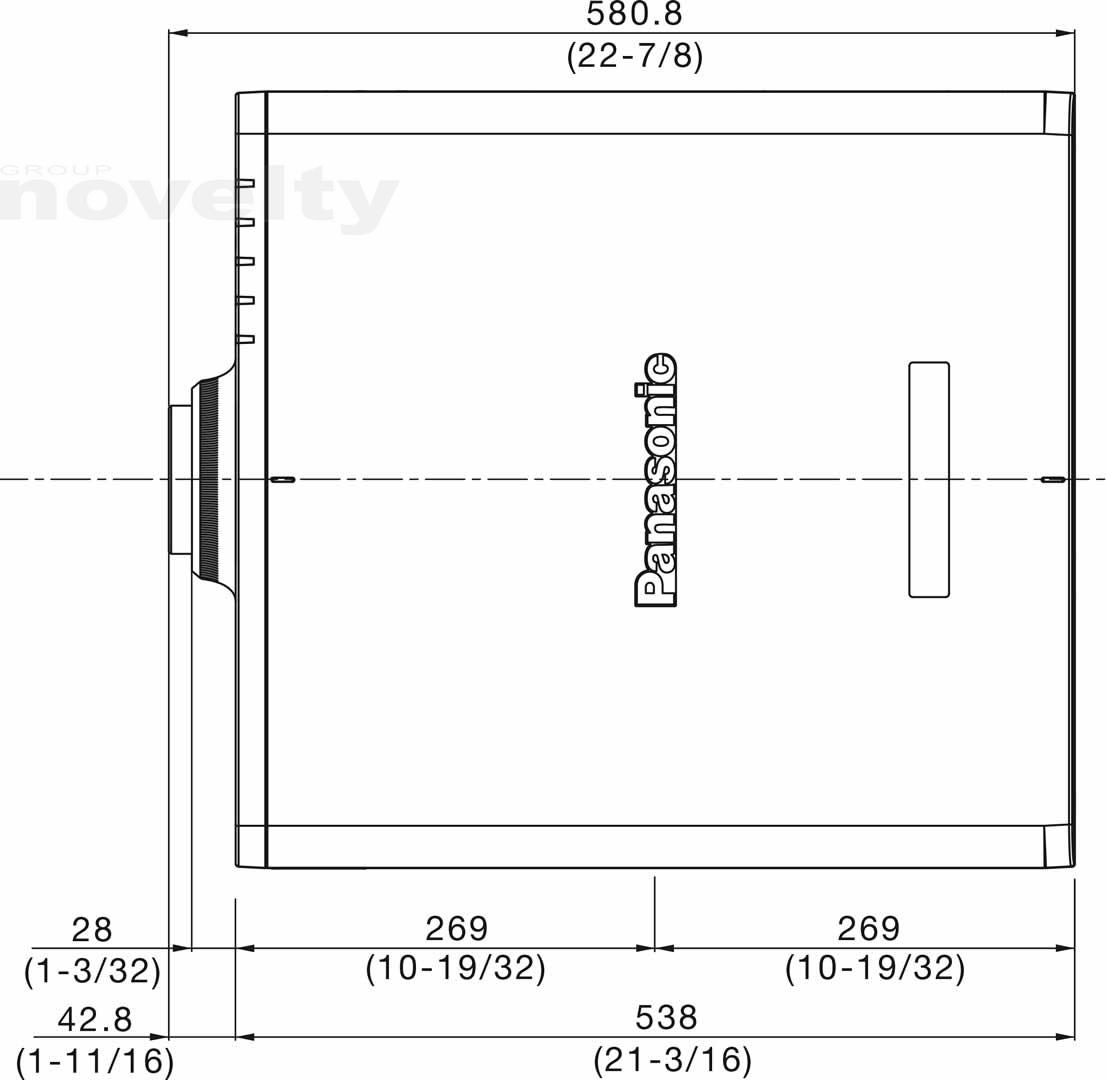

  • Dimensions unitaires : 498 x 200 x 581 mm
  • Poids du flight-case : … kg
  • Poids unitaire : 23,2 kg
Documents à télécharger
Catalogue PANASONIC

Matériels associés

  • Visuel Fiche complète : PANASONIC ET-DLE450
    PANASONIC ET-DLE450

    Zoom pour vidéoprojecteur DLP, 5.5-8.9, focale=79,6 à 125,2mm

  • Visuel Fiche complète : PANASONIC ET-DLE250
    PANASONIC ET-DLE250

    Zoom pour vidéoprojecteur DLP, 2.4-3.7, focale=33,9 à 53,2mm

  • Visuel Fiche complète : PANASONIC ET-DLE055
    PANASONIC ET-DLE055

    Optique fixe pour vidéoprojecteur DLP, F=1.8, focale=11,9mm
