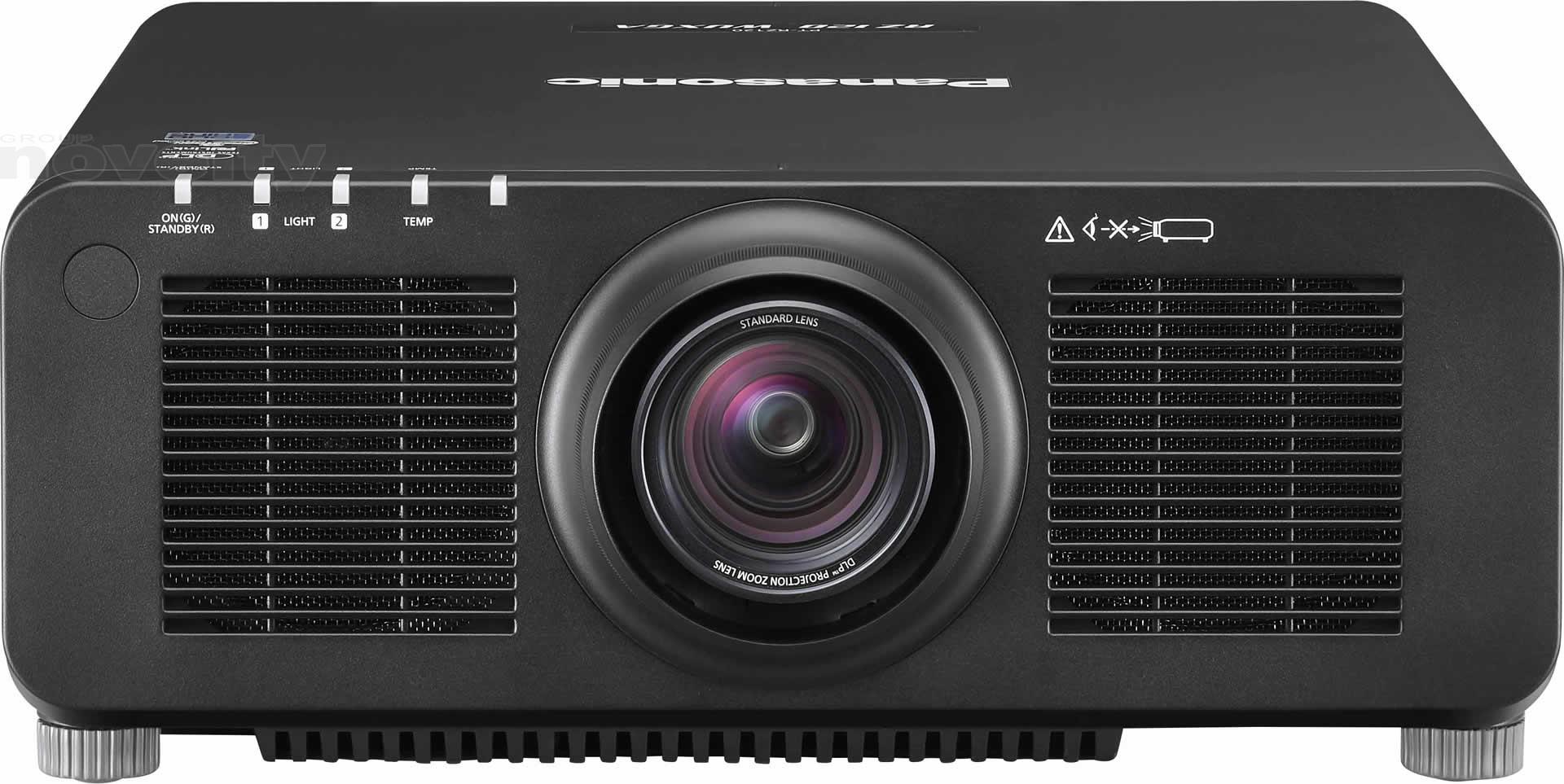

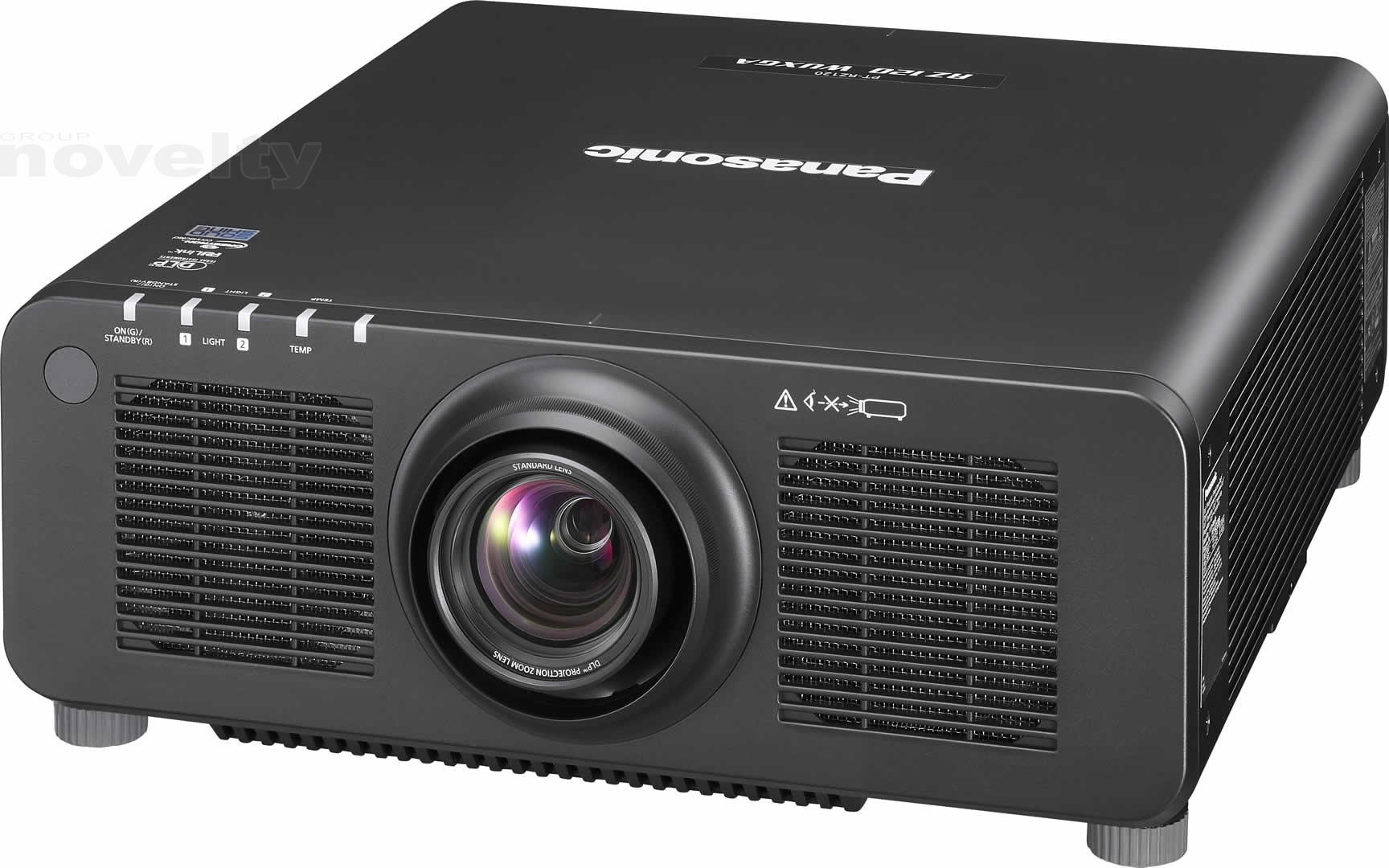

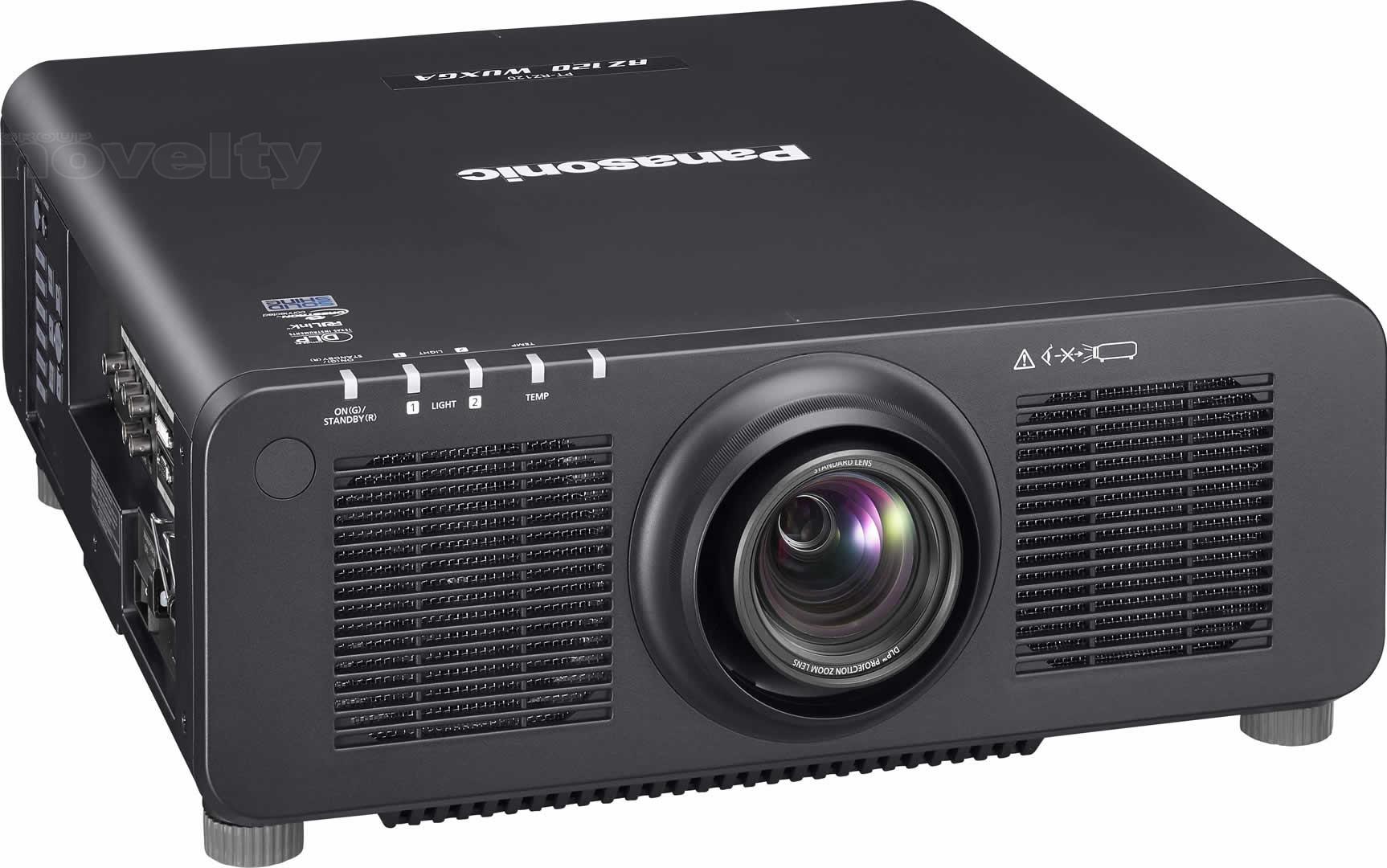

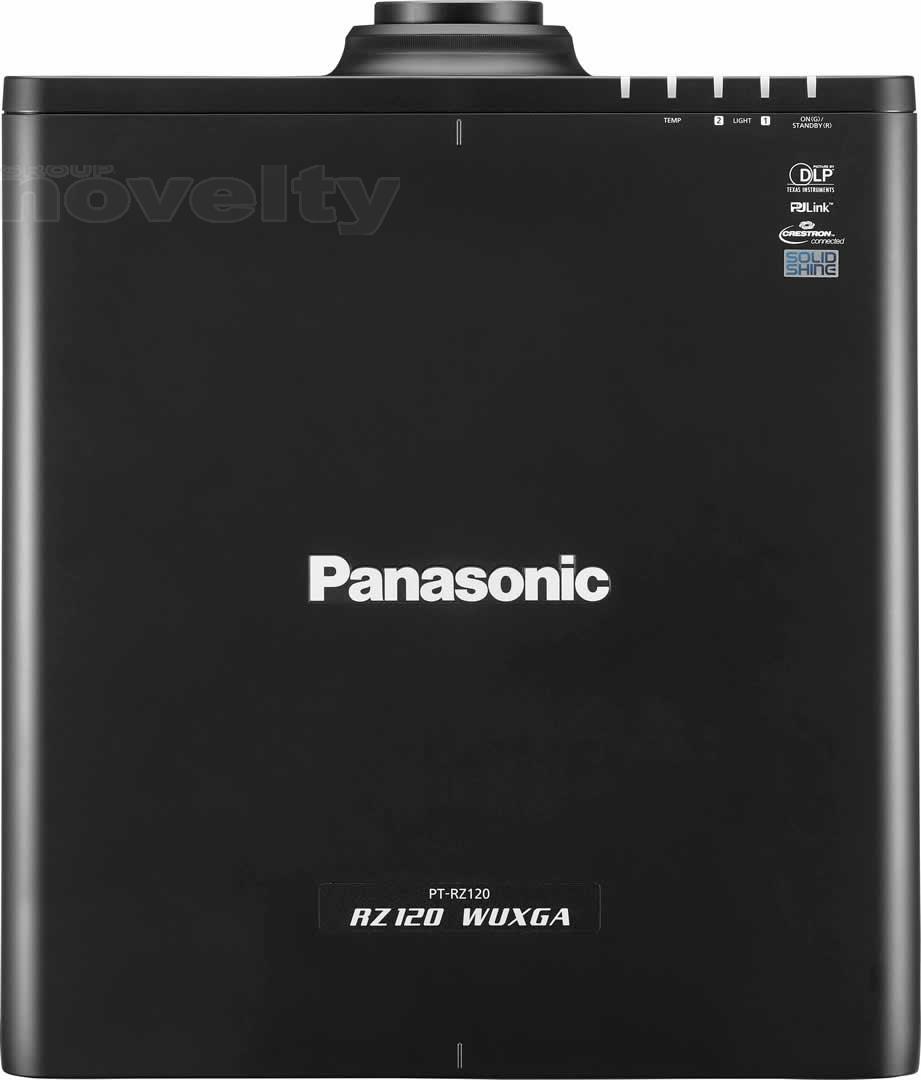

PANASONIC PT-RZ120BE

Descriptions détaillées

Conçu pour une utilisation intensive et une luminosité durable pour l’enseignement, les musées, les salles d’expositions et l’affichage dynamique. Projecteur WUXGA à source lumineuse laser, laser DLP à 1 puce, 12 000 lumens ANSI

Key Features

• Laser DLP à 1 puce, 12 600 lm (au centre) / 12 000 lm (ANSI), WUXGA
• Luminosité élevée et excellente qualité d’image avec source lumineuse laser
• Fonctionnement sans entretien jusqu’à 20 000 heures avec bloc optique résistant aux poussières et moteur laser durable
• Taux de contraste de 10 000/1
• Entrée 4K disponible (HDMI/DIGITAL LINK)

Projecteur laser Solid Shine robuste et fiable
Projecteur laser Solid Shine compact de la catégorie 12 000 lumens Conçu pour une utilisation intensive et une luminosité durable à destination de l’enseignement, des musées, des salles d’expositions et de l’affichage dynamique Jusqu’à 20 000 heures de fonctionnement sans entretien, Digital Link, taux de contraste de 10 000/1, installation flexible à 360°

Specifications

• Brightness : 12,500 lm (Center)*1 / 12,000 lm*2
• Resolution : 1920 x 1200 pixels
• Technology : Laser 1-chip DLP
• DLP™ chip | Panel size (mm) : 17.0 mm diagonal (16:10 aspect ratio)
• DLP™ Chip | Display Method : DLP™ chip x 1, DLP™ projection system
• DLP™ Chip | Pixels : 2,304,000 (1920 x 1200) pixels
• Lens : PT-RZ120: Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm PT-RZ120L: Optional powered zoom/focus lenses
• Light Source : Laser diodes laser Class 1 (Class 3R for US models)
• Screen size (diagonal) (mm) : 1.27-15.24 m, 1.27-5.08 m with ET-DLE055, 2.54-8.89 m with ET-DLE035, 16:10 aspect ratio
• Brightness*1 : 12,500 lm (Center)*1 / 12,000 lm*2
• Center-to-Corner Uniformity*1 : 90 % : Contrast*1 : 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
• Optical axis shift*2 | Vertical (from center of screen) : +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
• Optical axis shift*5 | Horizontal (from center of screen) : +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)
• Keystone Correction Range : Vertical: ±40° (±16° with ET-DLE060, ±22° with ET-DLE085/DLE055, +5° with ET-DLE035), Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035)
• Keystone correction range with optional Upgrade Kit ET-UK20 : Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/DLE250 / supplied lens, ±22° with ET-DLE085/DLE055), Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE085/DLE055), When vertical and horizontal keystone are used simultaneously, correction cannot be made exceeding total of 55°.
• Installation : Ceiling/floor, front/rear, free 360-degree installation

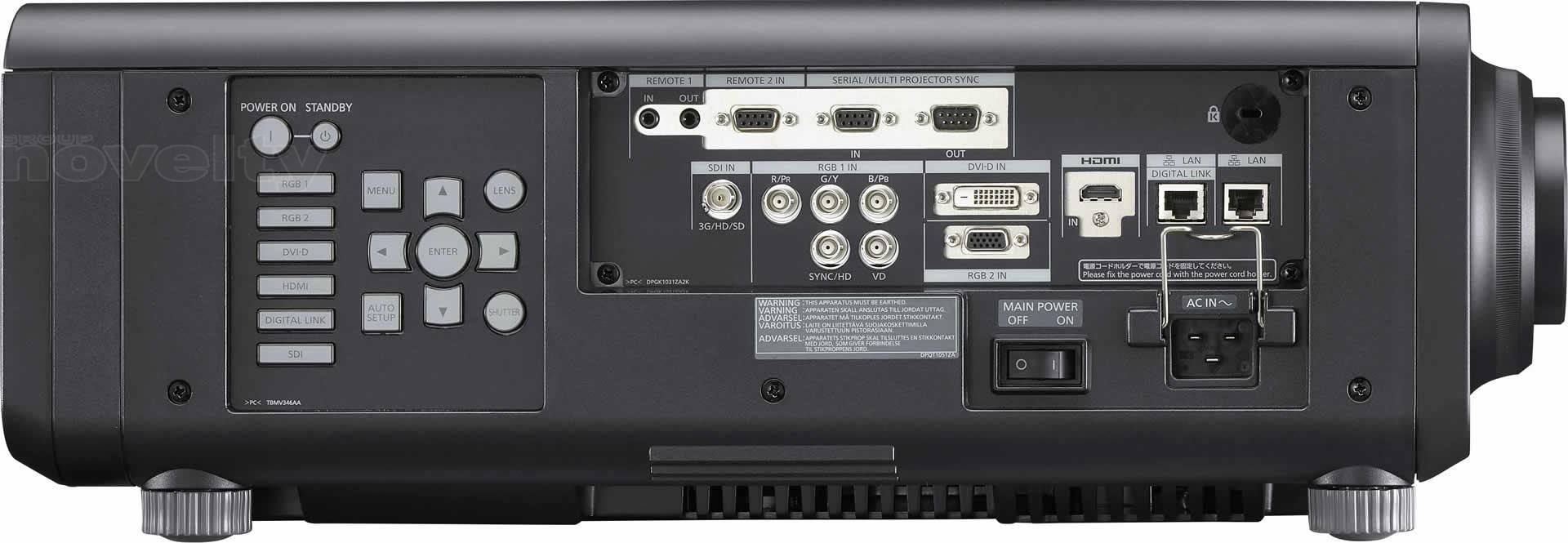

• Terminals | SDI In : BNC x 1: 3G/HD/SD-SDI input
• Terminals | HDMI In : HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
• Terminals | DVI-D In : DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
• Terminals | RGB 1 In : RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
• Terminals | RGB 2 In : D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
• Terminals | Serial In : D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• Terminals | Serial Out : D-sub 9-pin (male) x 1 for link control
• Terminals | REMOTE 1 IN : M3 x 1 for wired remote control
• Terminals | REMOTE 1 OUT : M3 x 1 for link control (for wired remote control)
• Terminals | Remote 2 In : D-sub 9-pin (female) x 1 for external control (parallel)
• Terminals | LAN : RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
• Terminals | DIGITAL LINK : RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color
• Power Supply : AC 100-240 V, 50/60 Hz
• Power Consumption : 1,275W (TBD)
• Operating noise*3 : 46 dB (TBD)
• Cabinet Materials : Molded plastic
• Operating environment (?/M) : Operating temperature: 0-45 °C *5, operating humidity: 10-80 % (no condensation)
• Operating environment (°F/Feet) : Operating temperature: 32-113 °F *5, operating humidity: 10-80 % (no condensation)
• Applicable software/application : Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android

Note: PT-RZ120L offers the same performance as PT-RZ120, but comes without a lens.
*1 Luminance measured at center of screen.
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*3 Lens shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE035.
*4 With legs at shortest position.
*5 The light output may be reduced to protect the projector depemding on the temperature or altitude of operational environment.
*6 Average value. May differ depending on the actual unit.
