DPA 4011C

Descriptions détaillées

Maximum clarity, minimum visibility

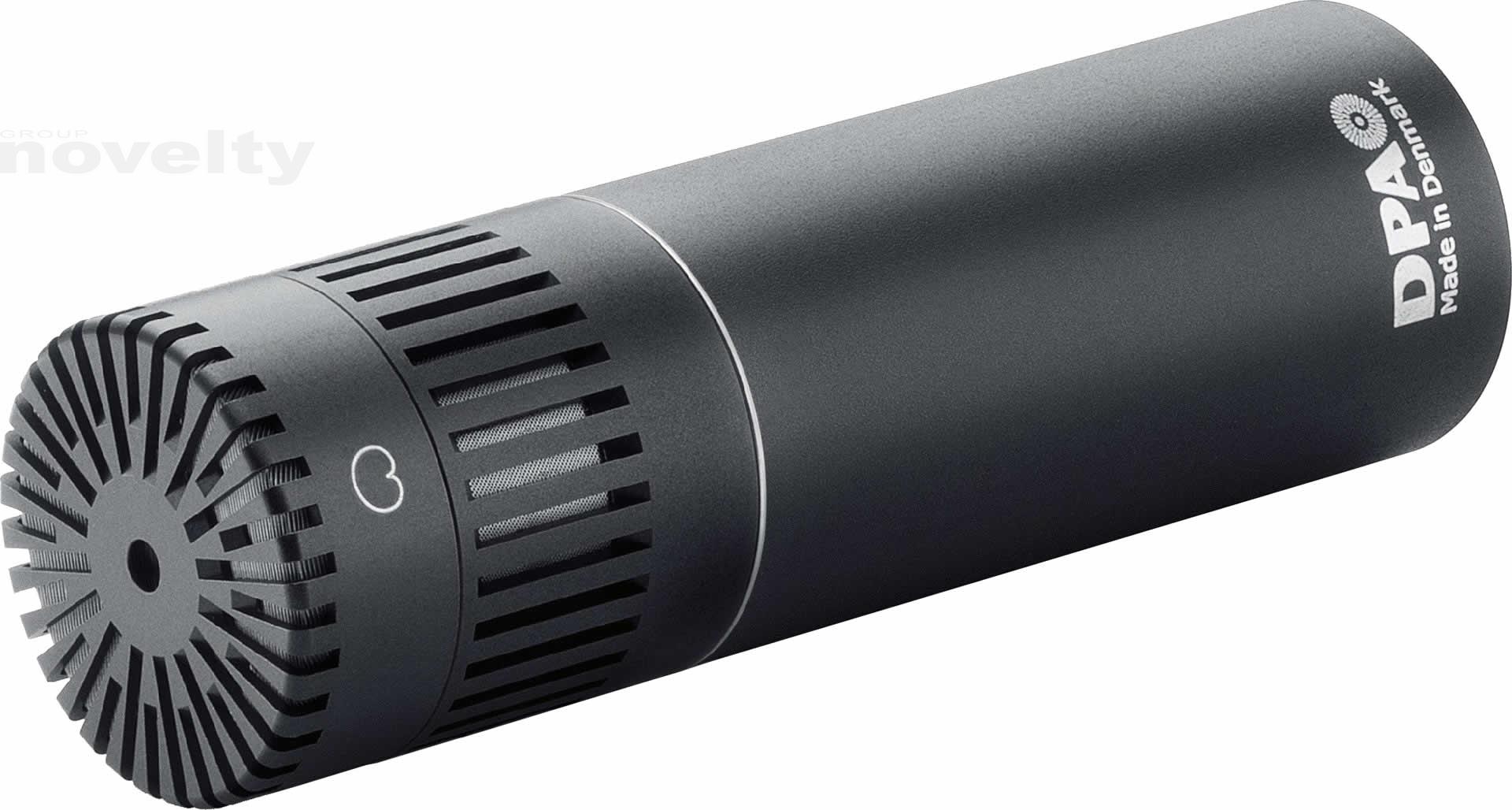

DPA’s Compact Cardioid range is proof that stunning clarity and absolute neutrality are not solely the characteristics of full-sized studio condenser mics alone. Designed to be hidden from view, the diminutive design and high performance of the DPA 4011C makes it the outstanding choice for unobtrusively miking all types of television, film, theatre, concert and studio performances.

Limited in size, not application

Capable of handling high SPLs without distortion, the 4011C is perfectly tailored for close-miking applications, minimizing bleed from other instruments. When used to spot-mike larger orchestras, these mics are hard to beat, and in film and TV studios, they are excellent for off-camera voice recording or Foley work. For live on-camera recordings, their matte black finish gives them a classic yet inconspicuous appearance, while for sound reinforcement in concert halls, theatres and houses of worship, they provide clean, natural sound while reducing the noticeable effect of lighting reflection.

Also available as matched stereo pair

The ST4011C stereo pair is supplied in a specially designed PeliTM Case, the stereo matching is free of charge.

Specifications for d:dicate™ 4011C Cardioid Microphone, Compact

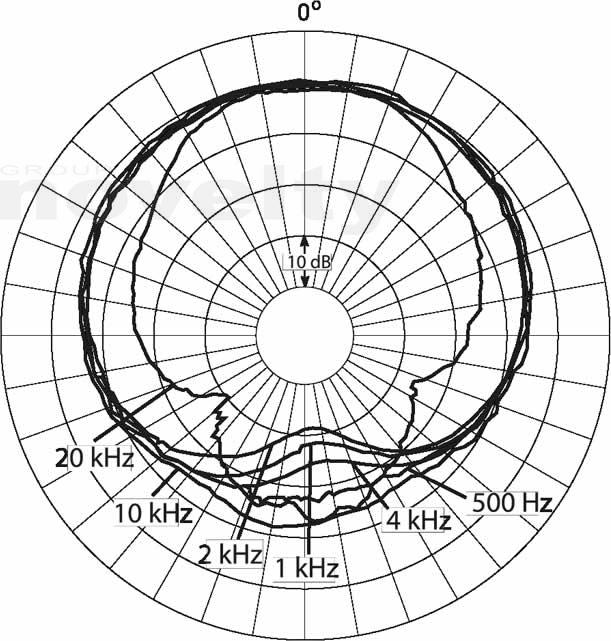

• Directional characteristics : Cardioid
• Principle of operation : Pressure gradient
• Cartridge type : Pre-polarized condenser
• Frequency range : 20 Hz to 20 kHz
• Frequency range, ± 2 dB : 40 Hz to 20 kHz
• Sensitivity, nominal ± 2 dB at 1 kHz : 10 mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted : Typ. 18 dB(A) re. 20 µPa (max. 20 dB)
• Equivalent noise level, ITU-R BS.468-4 : Typ. 25 dB
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) : Typ. 76 dB(A)
• Total Harmonic Distortion (THD) : < 1 % up to 139 dB SPL peak
• Dynamic range : Typ. 121 dB
• Max. SPL, peak before clipping : 152 dB
• Minimum load impedance : 2 kohm
• Output impedance : < 200 ohm
• Cable drive capability : 100 m (328 ft)
• Output balance principle : Impedance balancing with Active Drive
• Common Mode Rejection Ratio (CMRR) : > 50 dB
• Power supply (for full specifications) : 48 V Phantom power (± 4 V)
• Current consumption : 2.8 mA
• Connector : XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color : Matte black
• Output voltage, RMS : > 4 V
• Polarity : +V at Pin 2 for positive sound pressure
• Temperature range : -40 °C to 45 °C (-40 °F to 113 °F)
• Relative Humidity (RH) : Up to 90 %
• Matching tolerance : ± 1 dB

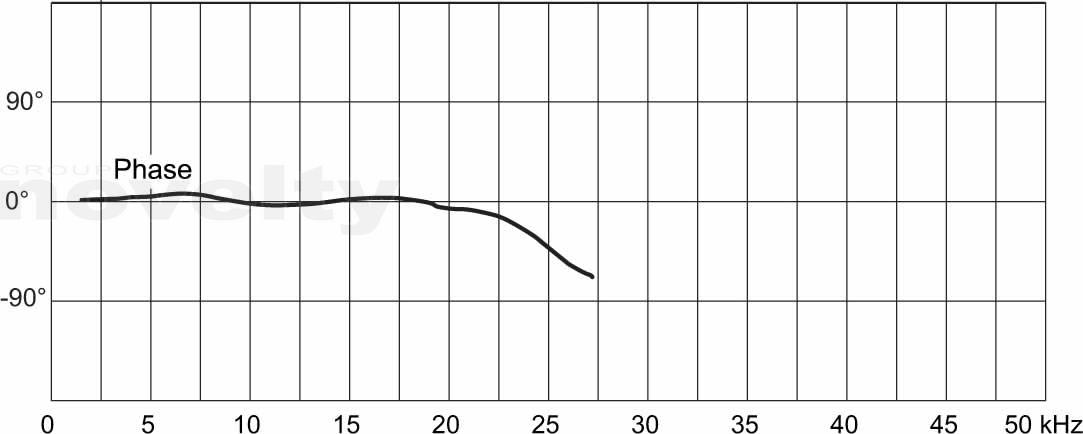

• Phase deviation for kit : < 10°
