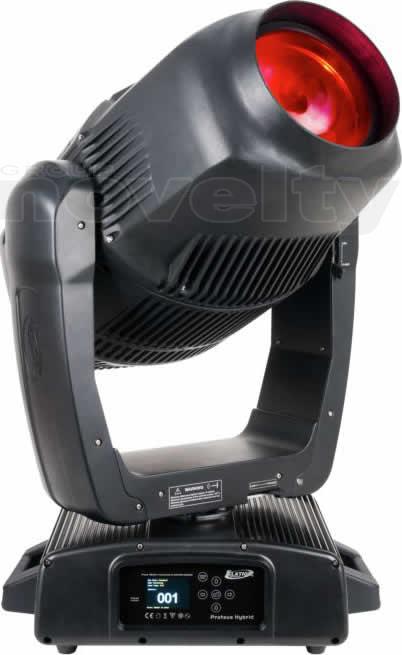

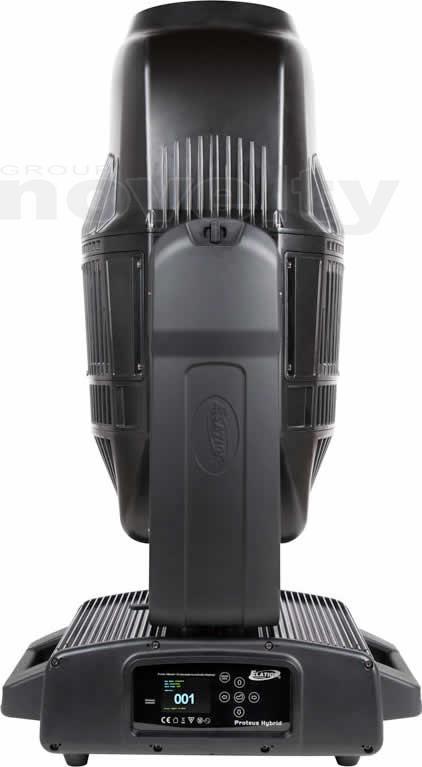

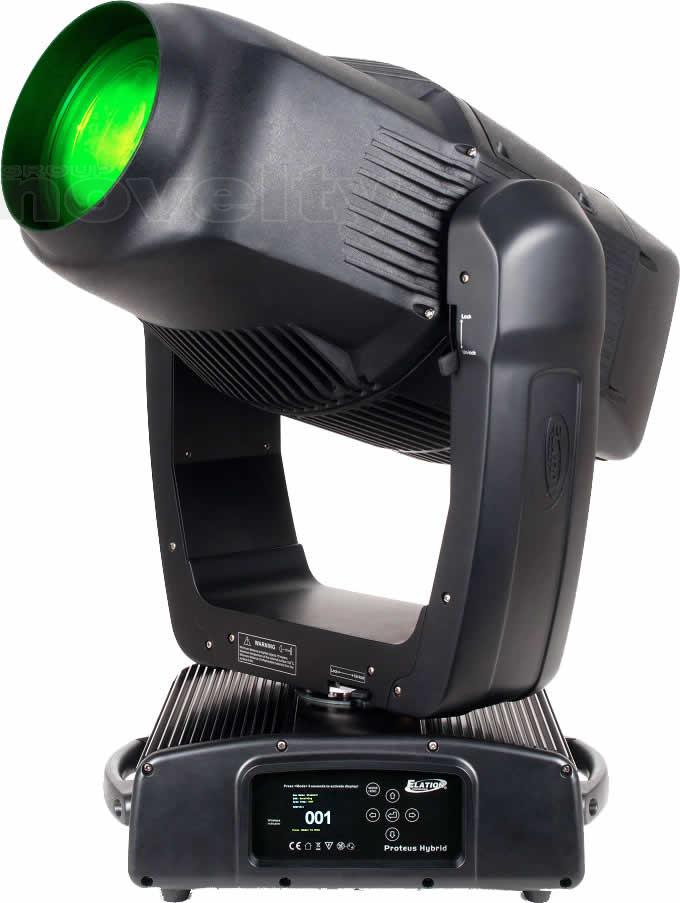

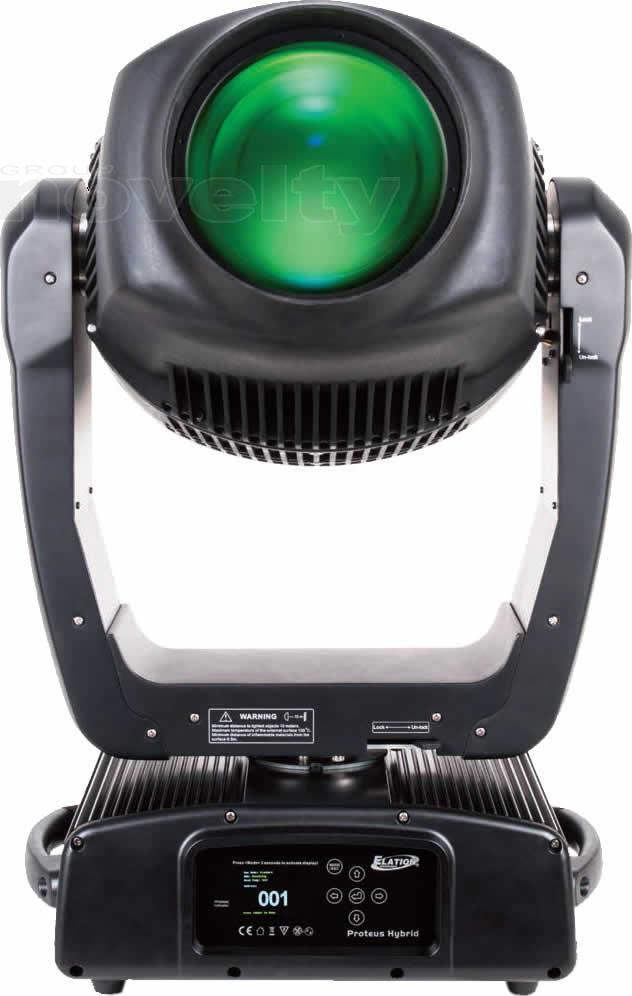

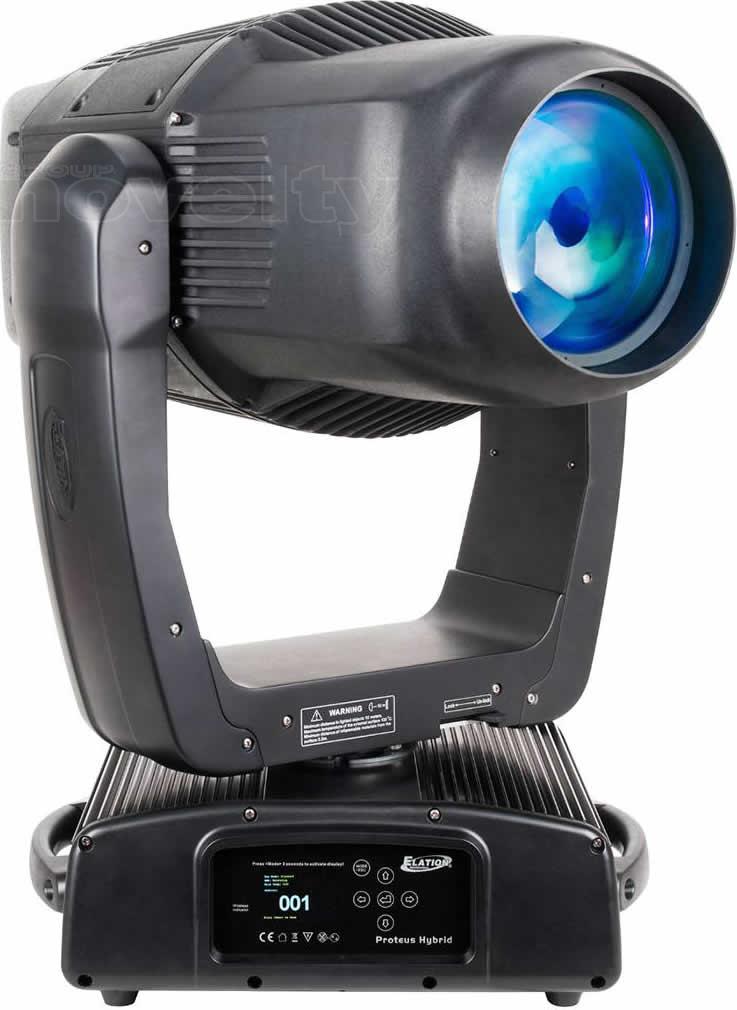

Elation Proteus Hybrid

Lyre effet étanche, 470 W, 8 000 K,

Descriptions détaillées



Features
  • IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash Luminaire
  • Philips™ MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics

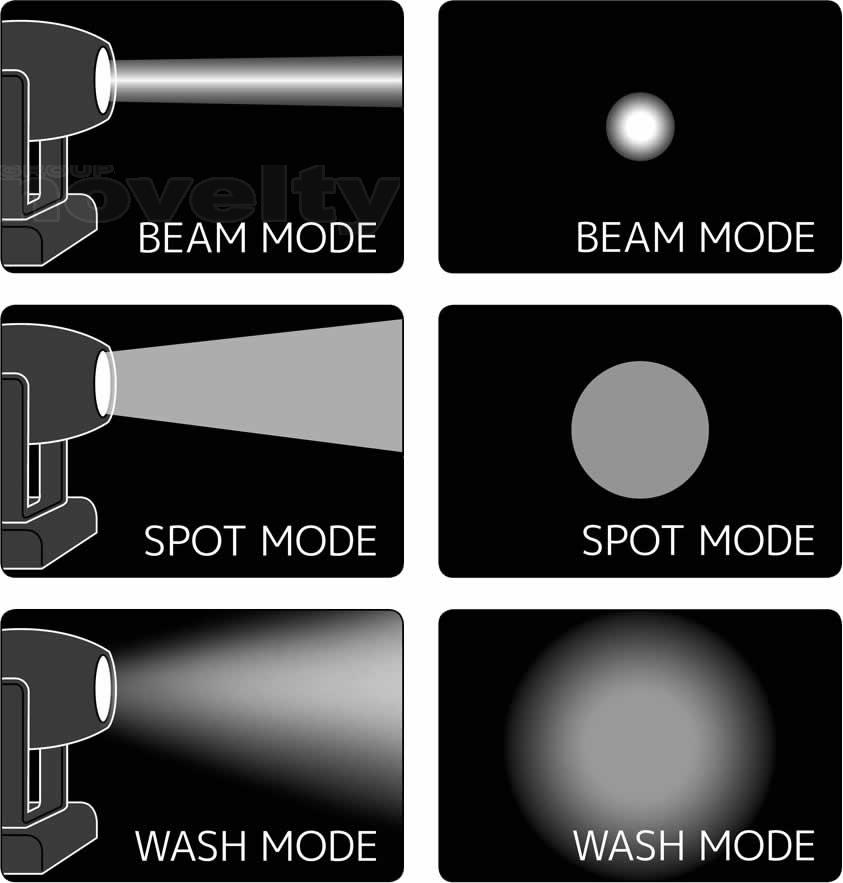

  • Motorized Zoom, Beam and Spot Modes
  • Advanced Internal Thermal Cooling System
  • Full CMY Color Mixing and Linear CTO Color Correction
  • 14 Dichroic Colors Including CTB, CTO, and UV
  • 8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
  • Full 360° Bi-Directional Animation Wheel
  • Rotating 8-Facet and Linear Prisms and Frost Filter
  • Motorized Focus and Auto-Focus
  • High Speed Mechanical Shutter and Strobe
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation’s E-FLY™ Internal Wireless DMX Transceiver
Specifications

SOURCE
  • Philips MSD 21R 470W 8,000K Lamp
  • 1,000 Hour Average LAMP Life*
*LAMP Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
  • 80CRI | >23,000 Lumens
  • ?13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
  • ?233,000 LUX 21,646 FC @49.2’ (15m) (2.0° Beam)
  • 11,500 LUX 1,068 FC @16.4’ (15m) (4.0° Wash)
EFFECTS
  • Full 360° Bi-Directional Animation Wheel
  • Rotating Prisms and Prism Macros
  • Frost Filter Hybrid Wash Effect?
  • Motorized Focus and Auto-Focus
  • High Speed Mechanical Shutter and Strobe

COLOR
  • 14 Dichroic Colors Including CTB, CTO, and UV
  • Full CMY Color Mixing and Linear CTO Color Correction
GOBOS
  • 8 Interchangeable Rotating / Indexing Glass Gobos
  • 14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
  • (3) DMX Channel Modes (24 / 26 / 37)
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation’s E-FLY™ Internal Wireless DMX Transceiver
  • IP65 5pin DMX In/Out?IP65 RJ45 etherCON In/Out
  • IP65 powerCON TRUE1 Power In
  • With Wired Digital Communication Network
ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 700W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
  • CE | cETLus | IP65
Informations
Propriétés techniques

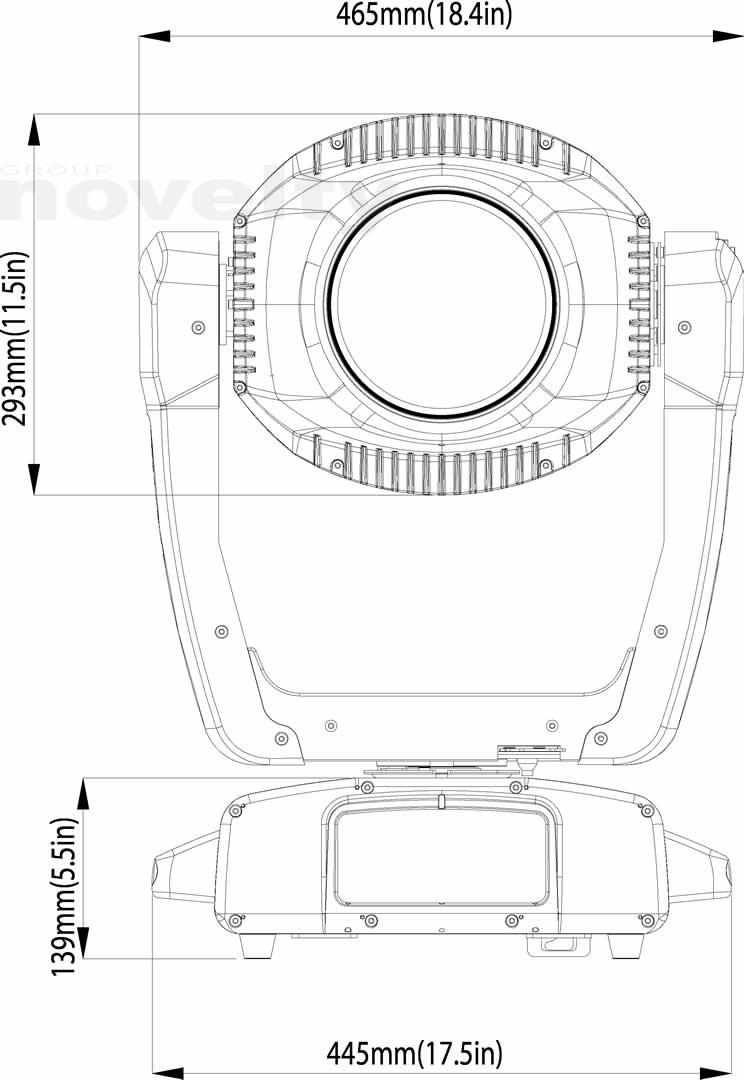

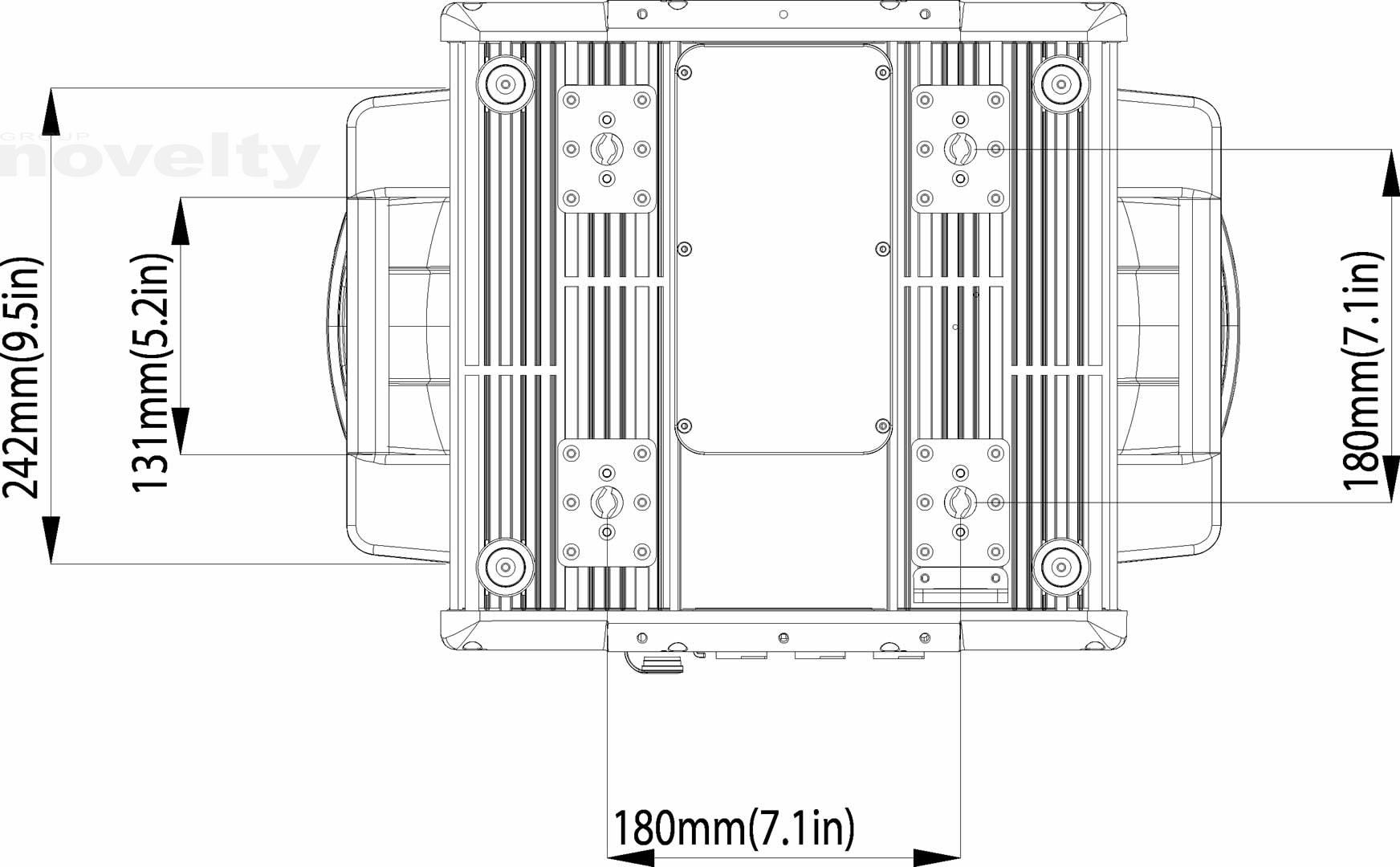

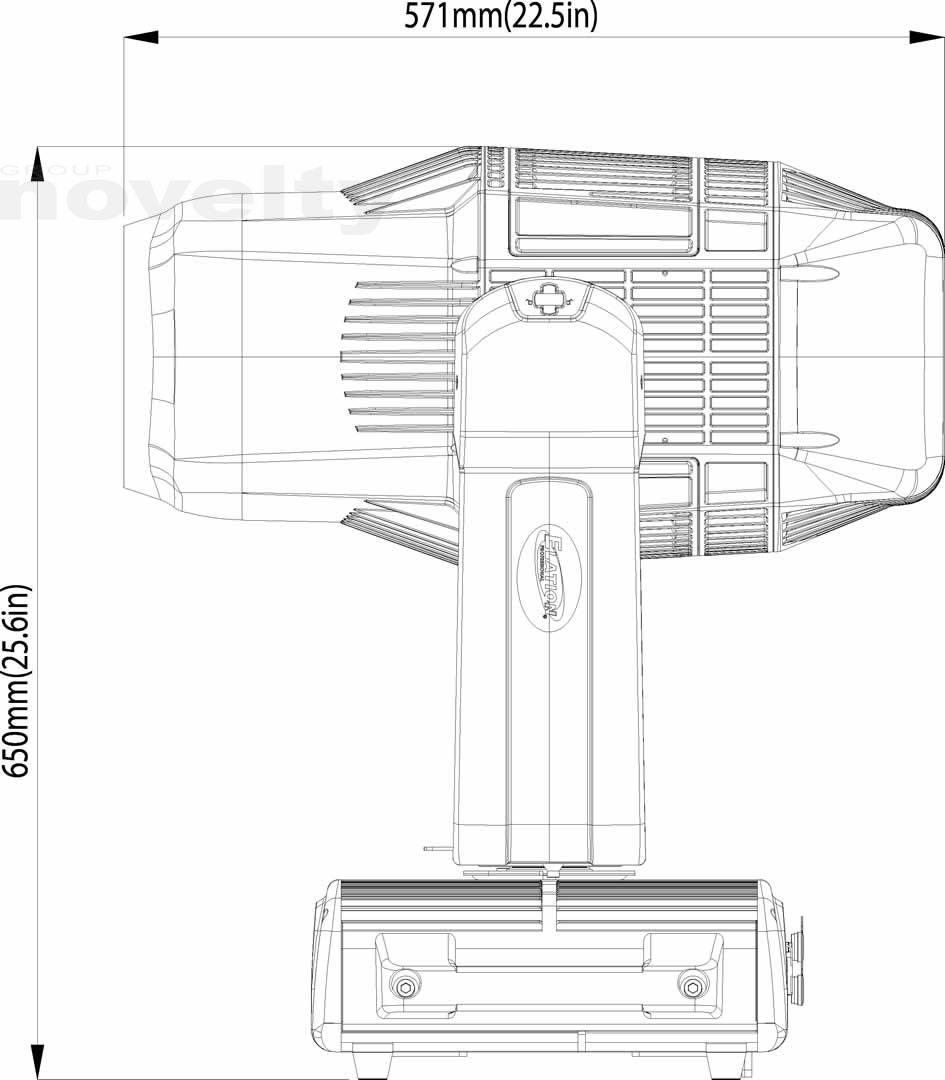

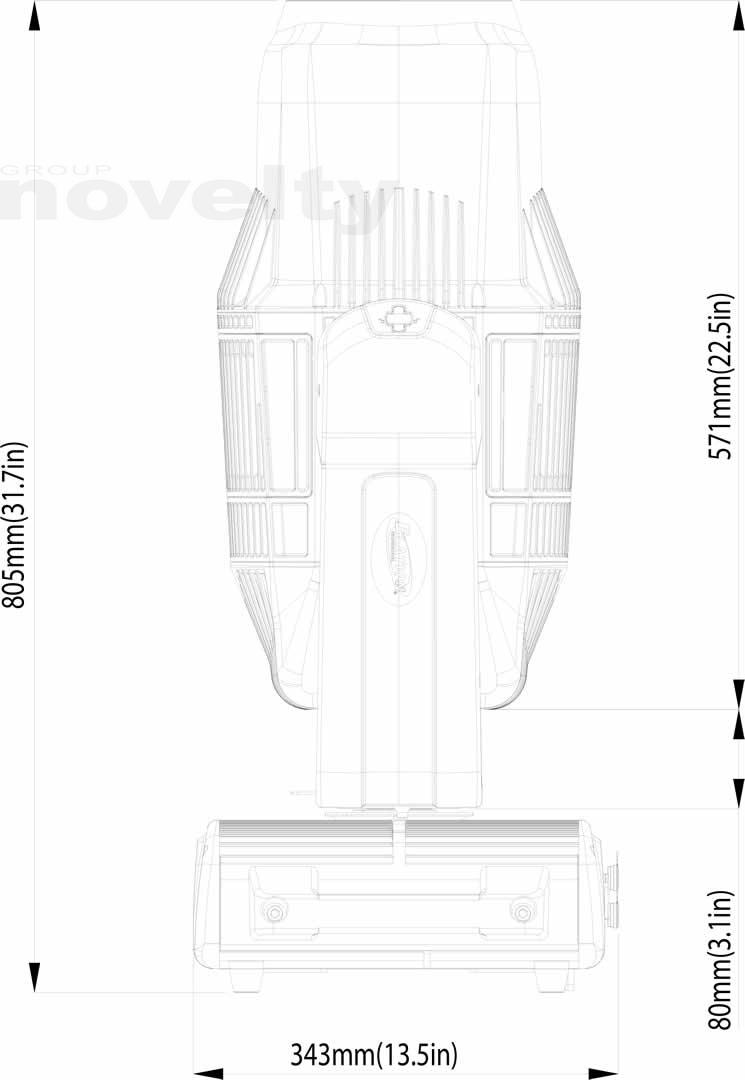

  • : 445 x 572 x 800 mm
  • Consommation électrique : 700 W
  • Dimensions en flight-case (X2) : … x … x … cm
  • Poids en flight-case (X2) : … kg
  • Poids unitaire : 40 kg
