ETC / iLites S405 LED

Descriptions détaillées

Vue objet Quicktime VR :

Cliquez-glissez votre souris sur l'objet pour le visualiser en 3D sous 360°

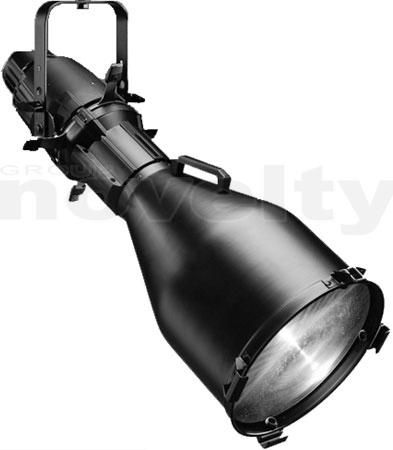

Corps de découpe ETC Source Four®

• Faceted dichroic reflector removes 90% of IR heat from beam
• One-handed zoom operation
• Positive zoom lock
• Field angle and focus scale markings
• Rotating barrel ± 25%
• Three-plane stainless-steel shutter blade assembly
• Tool-free lamp adjustment
• Easy access lens cleaning
• Insulated rear handle
• Rugged die-cast and extruded aluminum construction
• Supports Dimmer Doubling™

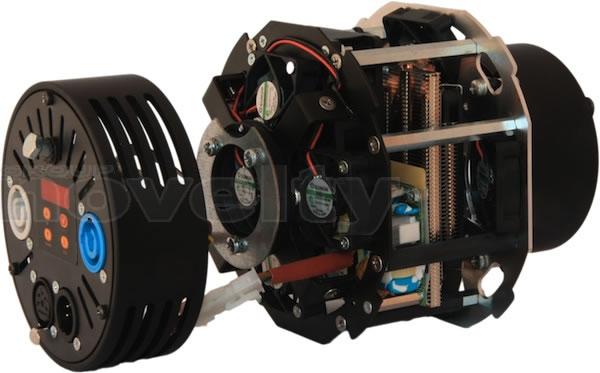

Optique LED iLites HPLED White

The HPLed assembly  replaces the traditional HPL 575W and 750W Lamp  for use in original profile-luminaires. The   integral set of acromatic lenses set in the optical system enhances brightness and gives consistency of  light distribution across the illuminated surface thus  providing close and comparable light output  to  traditional tungsten bulbs.

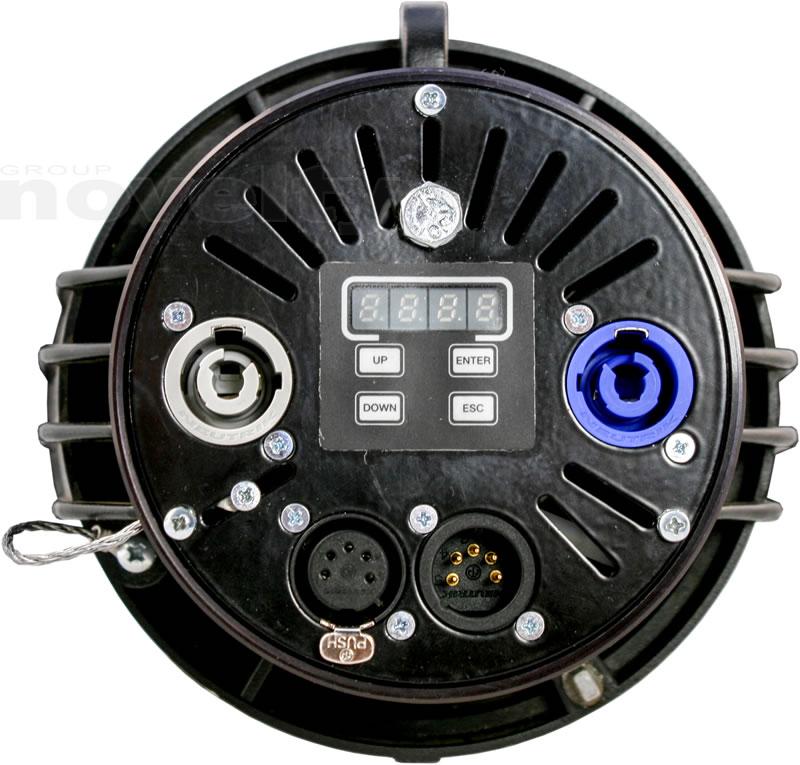

The HPLed  is powered by an high power Light Emitting Diode Array with a standard colour temperature of 4000°K. HPLed incorporates a  display board  to operate the fixture via RDM and or DMX Protocols. The rear section of the RDM/DMX HPLed embeds functions to  facilitate fixture operations,  such as convenient  IN/OUT 5-pin XLR and PowerCon connectors.

• Luminous flux: 13000lm @ 3200°K 16000lm @ 5600°K
• Colour Temperature: 4000°K
• Light Source Life: 50000hours
• Double optics assembly allows for luminaires' operations to use original optional profile lenses
• RDM and/or DMX protocols
• Integrated display board to facilitate fixture set-up
• Silent cooling fan with speed adjustment
• Protection sensor to ensure LED safety operation
• 5 Pin IN/OUT XLR Connectors
• PowerCon IN/OUT Connectors
• Power Consumption: 170W
