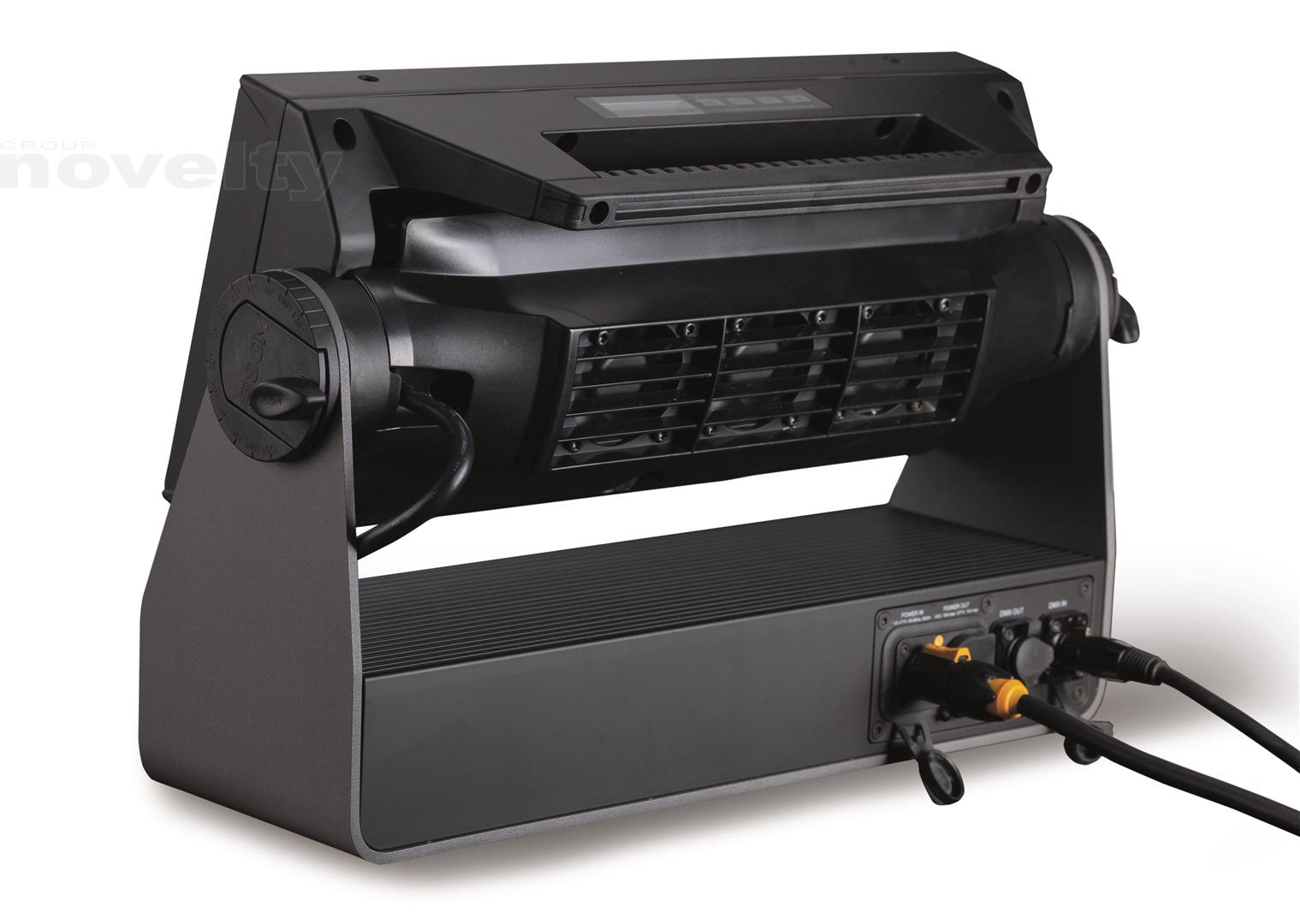

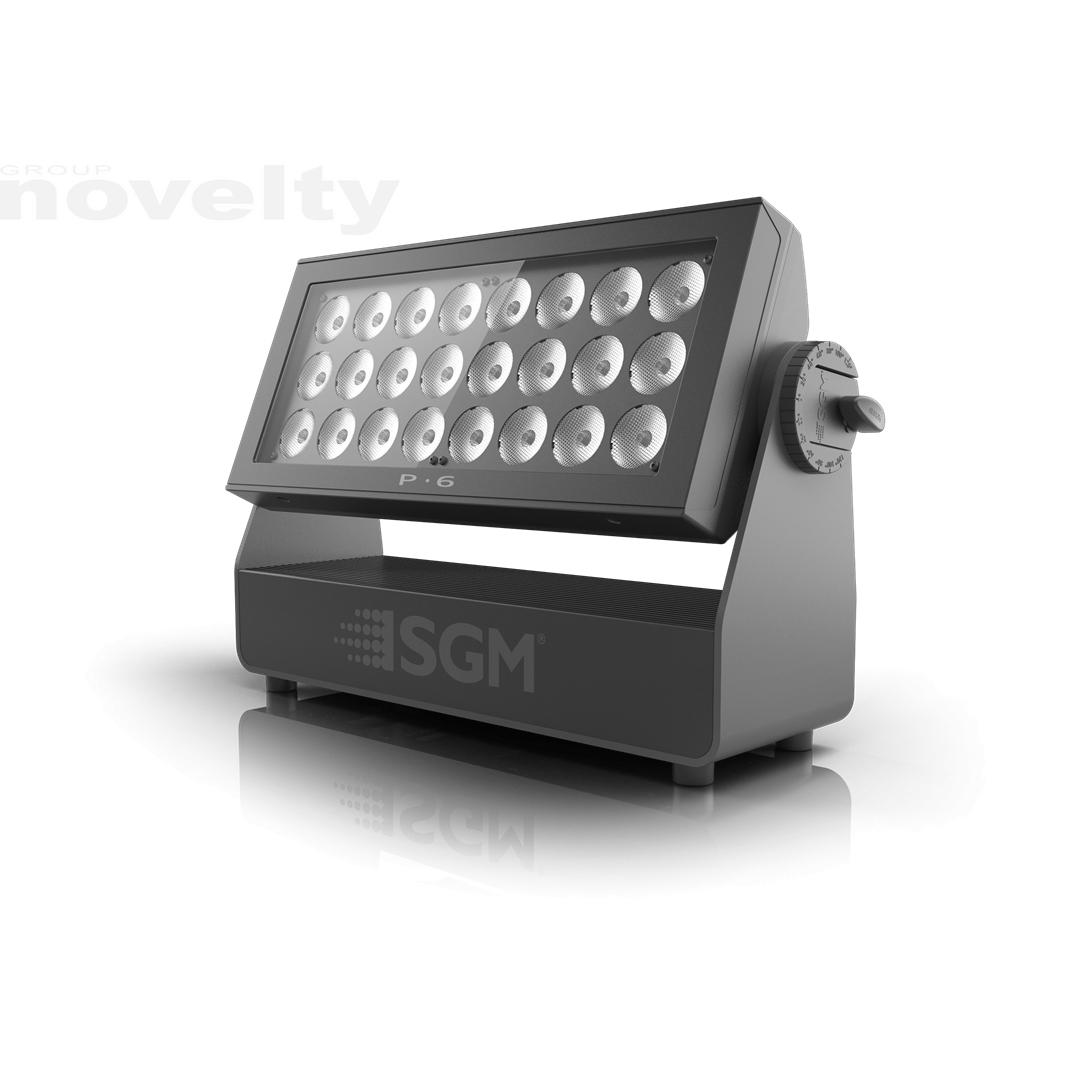

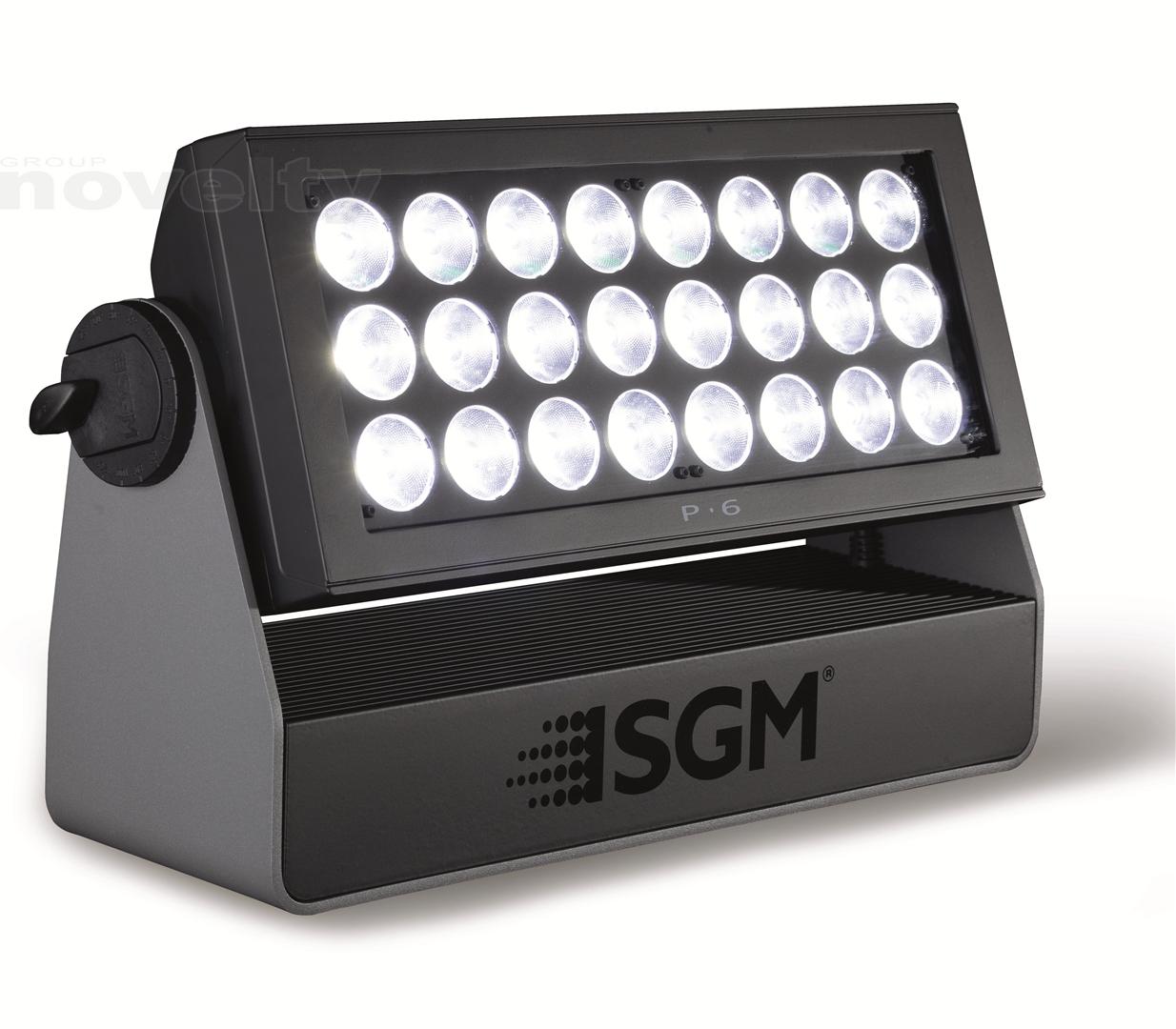

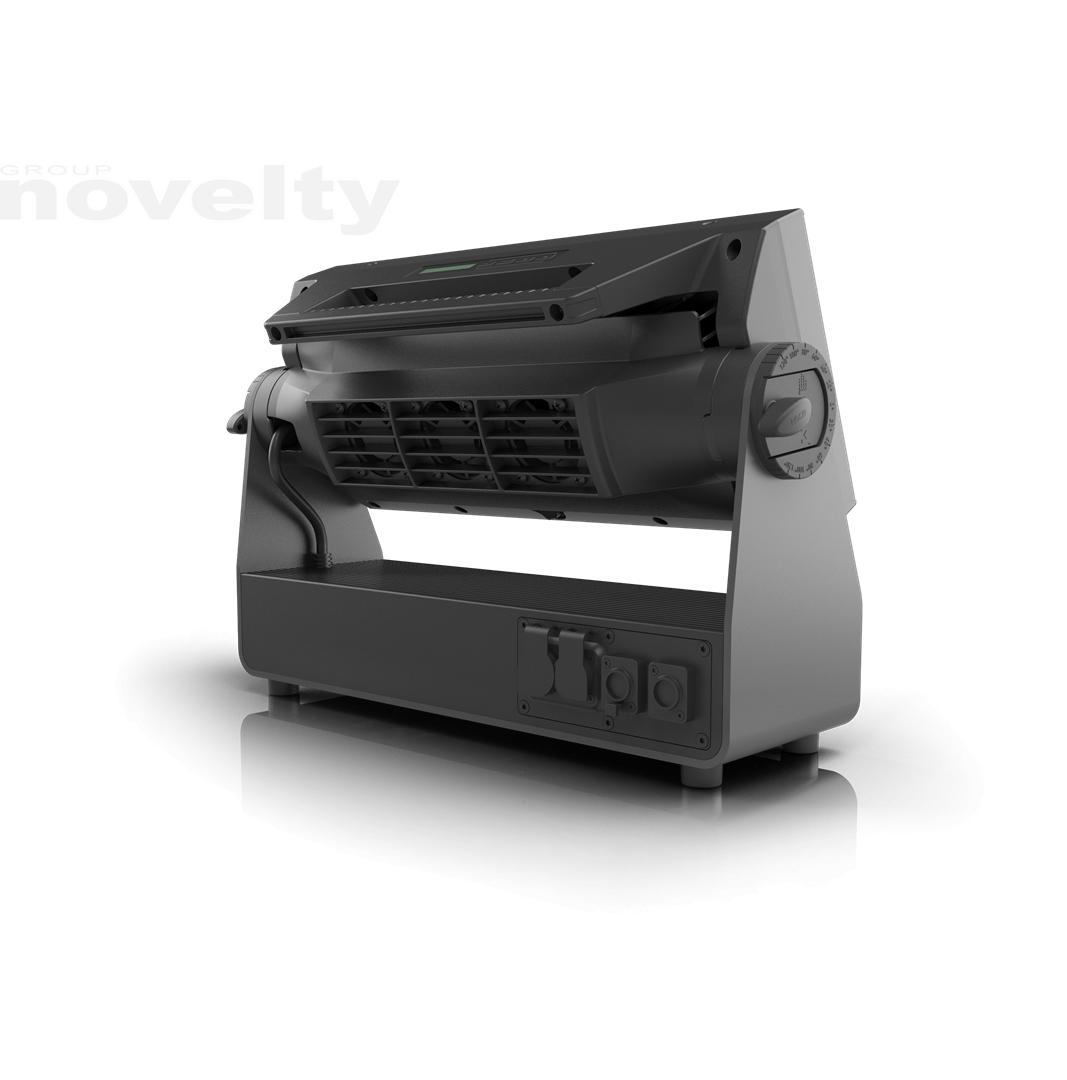

SGM P6

Descriptions détaillées

The P-6 is the standardized LED wash fixture in the lighting industry, due to its IP66 rating, superior reliability, and user-centered design. Optimized for high punch in medium distances, the P-6 combines the compact size and low power consumption of the P-5 series with the unique optical approach and ergonomy of the powerful P-10. This all-in-one LED luminaire features pixel-mapping control, long-throw capabilities with native 10º front lens, and all the benefits of magnetic easy-fit filter frames for different beam angles. It is a wash light, a pixel product, and a blinder in a lightweight, smart, and robust design: a must-have LED fixture.


Specification

Optical Data

• LED expected lifetime : 50,000 hours
• Lightsource : 24 x high-power 24W RGBW LEDs
• Native lens options : 10°
• Optional filters :
  • Elliptical horizontal, I/P, external (10° x 60° angle)
  • Elliptical vertical, I/P, external (60° x 10° angle)
  • Wide, P-1/P-6/P-10, external (47° angle)
  • Medium, P-1/P-6/P-10, external (18° angle)

Photometric

• Efficacy : 37 lm/W
• Light output all LEDs on : 18297 lm
• Light output blue : 1469 lm
• Light output green : 6369 lm
• Light output red : 3965 lm
• Lumen per kilogram : 1262 lm / Kg
• Lux @ 10m : 3546 lux
• Lux @ 3m : 39400 lux
• Lux @ 5m : 14183 lux
• Native beam angle(s) :
  • 11° (with 10° lens)
  • 18° (with Med filter frame)
  • 47° (with Wide filter frame)
• Native field angle(s) : 20°

Physical

• Effective Projected Area : 2.15 Square ft
• IK rating : IK06
• IP class : IP66
• Lens material : Tempered glass front
• Material :
  • Aluminium
  • PC/ASA
  • Rubber
  • Steel
• Net dimensions inches : 20 x 12.6 x 6.5 inches
• Net weight : 14.5 kg (32 lbs)

Features

• Color calibration : SGM proprietary, full color calibration
• Dehumidifier : Head
• Dimming : 3 Smooth fade in, DMX-controllable curves: gamma corrected, linear, halogen emulation
• Emulation mode / effect :
  • Tungsten response emulation
  • Color Filter Emulation
• Filters : Magnetic easy-fit spread angle filter frames
• LED panel : 6 individually controllable segments
• Other :
  • Studio DMX mode(s)
  • LED frequency control over DMX
• Physical head straight up height : 301 mm
• Strobe
  • Ultra-high-speed strobe effects
  • Intensity, Duration, Rate and FX control channels
  • Pixel strobe (up to 6 segments)
• Tilt : 220°
• Tilt locking system : Locking system with angle indicator

Electrical

• Electrical protection : Overload protection with automatic recover
• Input voltage, absolute max. rating : 100 - 305 VAC; 50 / 60 Hz
• Input voltage, nominal : 115 - 277 VAC; 50 / 60 Hz
• Max inrush current 230VAC : 70 A
• Max power consumption : 630 W
• Max power thru @ 100 V : 13 A
• Max power thru @ 230 V : 13 A
• Power factor : 0.96 PF (230 V)
• Power Supply Unit : Inbuilt IP 67 Auto-ranging electronic switch-mode
• Standby power consumption : 10 W

Programming and Control

• 16-bit control : Dimmer, Red, Green, Blue, White
• Cabled DMX : 5 pin XLR input/output
• DMX channels : 4, 6, 8, 9, 10, 18, 21, 24, 26, 27, 40
• DMX modes : 13
• Protocol :
  • CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
  • USITT DMX512A
  • RDM ANSI E1.20
• Setting and addressing :
  • OLED graphical display / 4 buttons
  • RDM ANSI E1.20
• Standalone mode :
  • Quick Color
  • 3 programs with up to 24 scenes
• Wireless DMX : Lumen Radio with RDM

Connections

• DMX data in/out :
  • IP67 XLR 5-pin connector, Female
  • IP67 XLR 5-pin connector, Male
• Power : Power input connector & link-thru

Installation

• Mounting point : 3 x two quarter-turn locking points for two or three Omega Brackets
• Orientation : Any
• Rigging possibilities : Hanging (Omega Bracket included) or ceiling/wall mount (optional)
• Safety features :
  • Bottom mount for safety wire
  • Minimum distance to combustible materials: 0.3 meter (11 in).

Thermal

• Cooling : Active, Forced Air, Temperature-regulated
• Humidity (max.) : 98 %
• Thermal protection : Automatic overtemperature protection
• Total heat dissipation, max power : 2149.6 BTU per hour
• Total heat dissipation, standby : 34.1 BTU per hour

Conforms To

• CE - 2014/30/EU: EMC Directive :
  • EN 55103-2
  • EN 55015
  • EN 61547
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55032
• CE - 2014/35/EU: Low Voltage Directive
  • EN 60598-1
  • EN 60598-2-17
  • EN 62471
  • EN 60529
• RoHS2 Directive : 2011/65/EU
• UL : UL Std. 1573

Certified To

• CSA Std. C22.2 No. 166
